How to generate pick and place (Centroid) file using EasyEDA?

1) Kindly change the units of measurement of the PCB to mm (millimeters) before generating Pick and Place file.

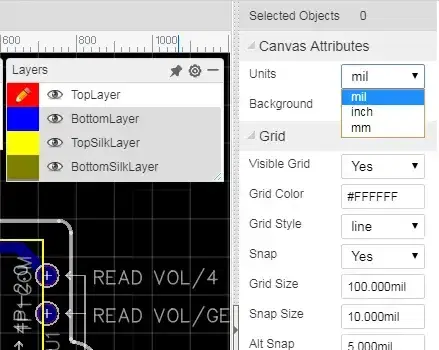

Change the units in Canvas Attributes as shown below:


2) To generate the Pick and Place file be in the PCB editor window

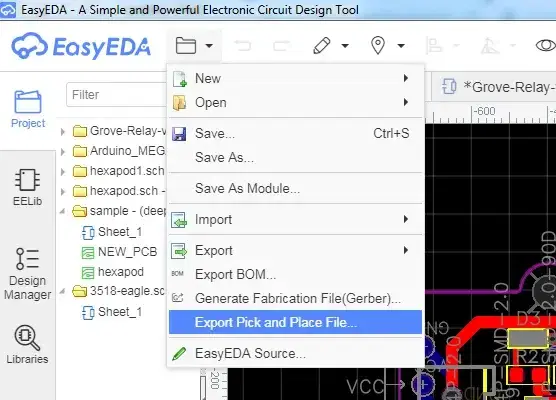

go to Document >> Export Pick and Place file.

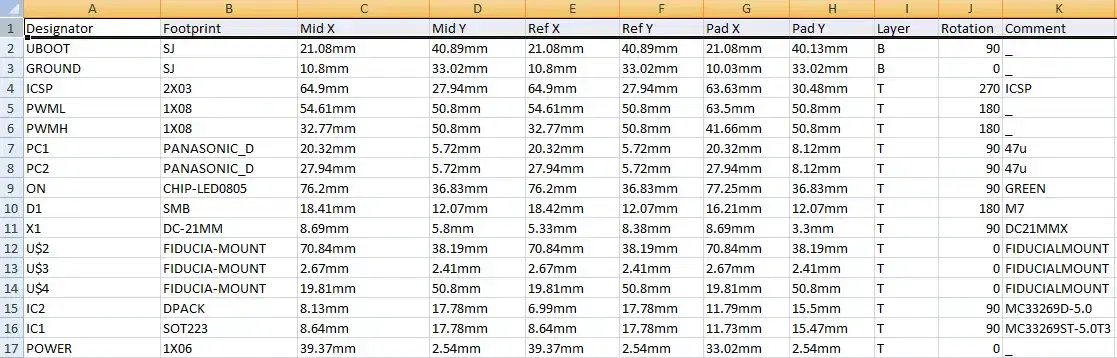

When you open the exported Pick and Place csv file, You will find the document opened as shown below:

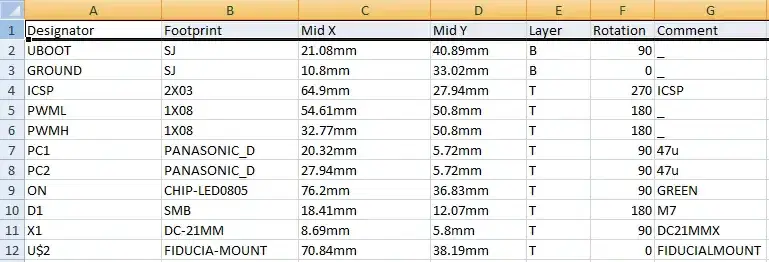

Now you need to make changes by deleting columns which is not required by LionCircuits. The required document lis shown in the image below:


Kindly export the updated Pick and Place file and Email it to after placing the assembly order.
