How to generate Gerber file using Allegro/OrCAD ?

1) Once the Design is ready, open the OrCAD tool and crosscheck the necessary parameters.

2

2) Go to Export > then select Gerber Parameters.

3

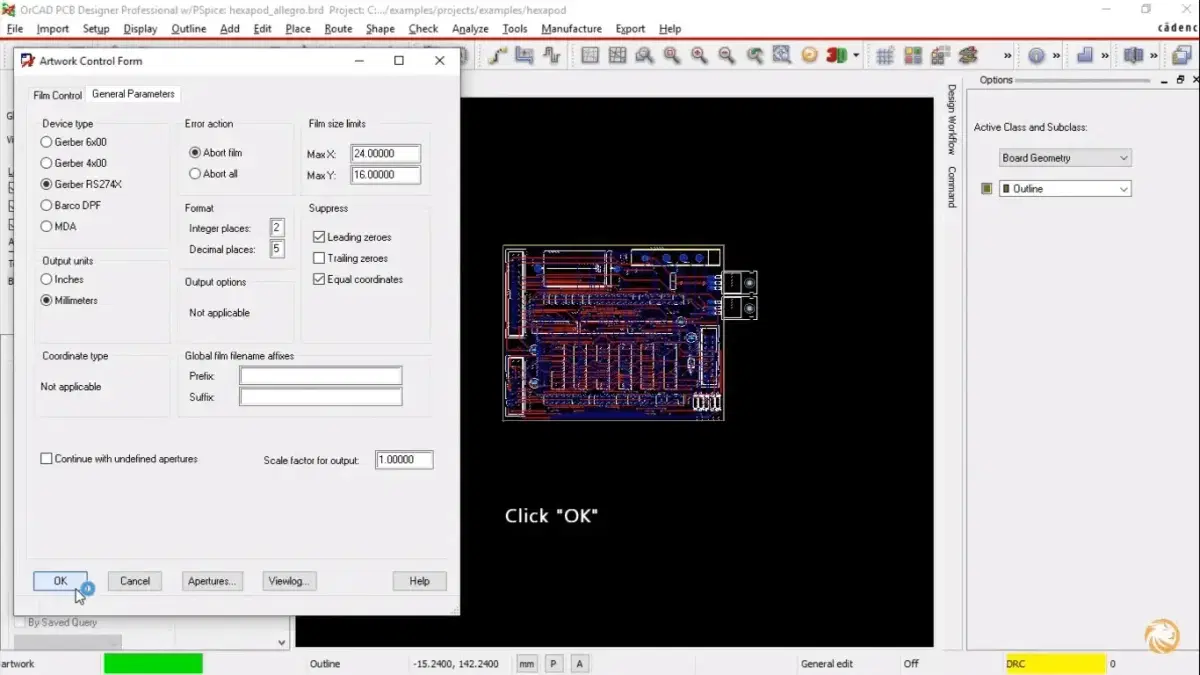

3) Select all the Gerber parameters as shown in the image below and then click on "OK".

4

4) Again go to Export and click on Export parameters.

5

5) Select the suitable format and then click on OK.

6

6) Go to Export and then click on Gerber.

7

7) Select the layers and then click on "Create Artwork"

8

8) Once you have selected the suitable checks, click on OK.

9

9) Click on Export and then select NC drill.

10

10) Select the appropriate settings and then click on drill.

11

11) Click on "close"

12

12) All the files will be created.

13

13) Select the files and then compress them into .Zip file. Once this is done, you are ready to upload the file on our platform.
