How to generate the Gerber files using DipTrace?

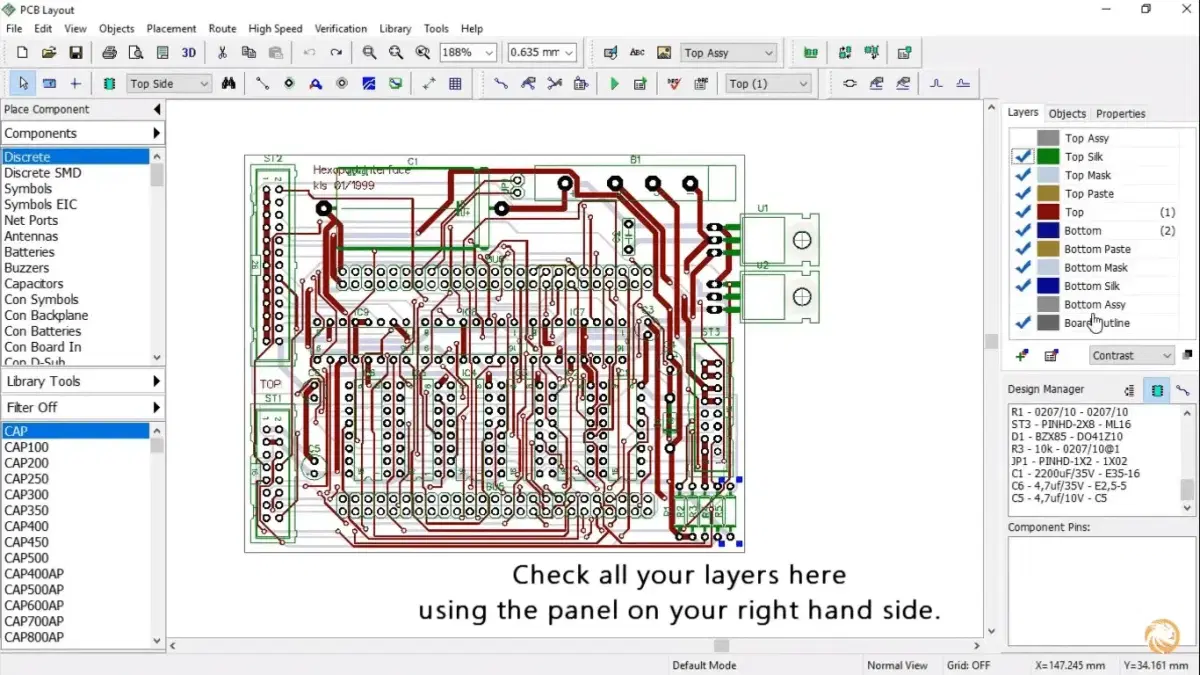

1) Check all the layers here using the panel on your right hand side.

2

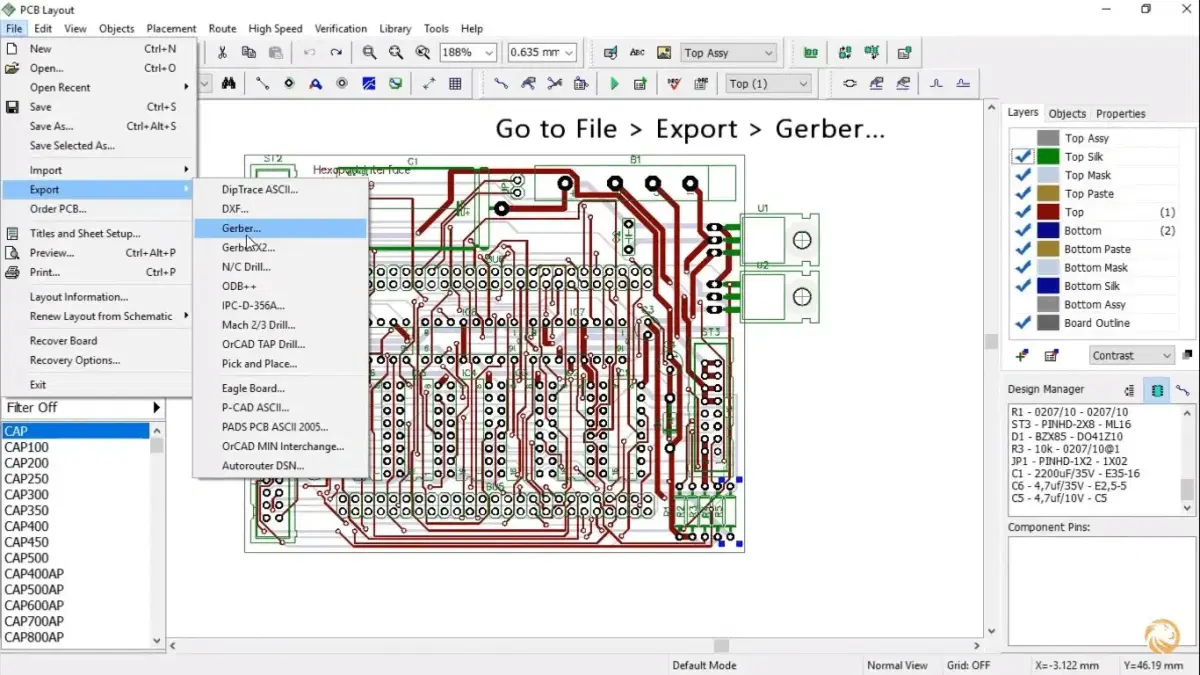

2) Go to file and then select "Export" and then click on "Gerber" in the drop down.

3

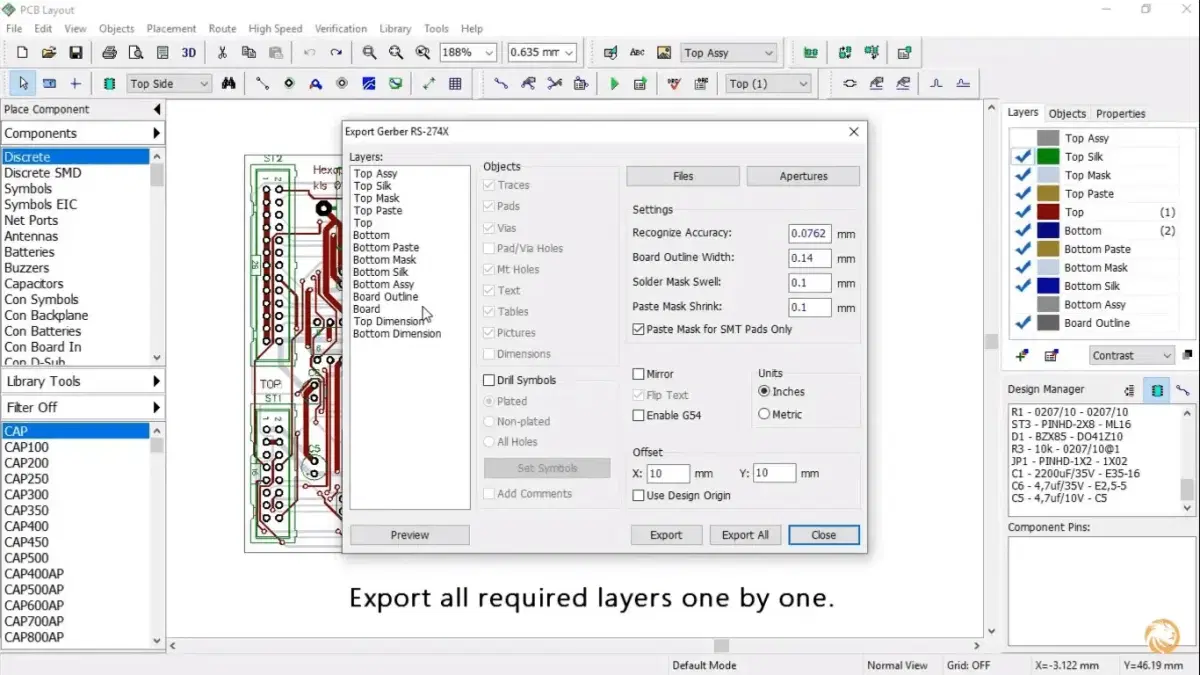

3) Click on "Export All" in the pop up window and Export all layers one by one.

4

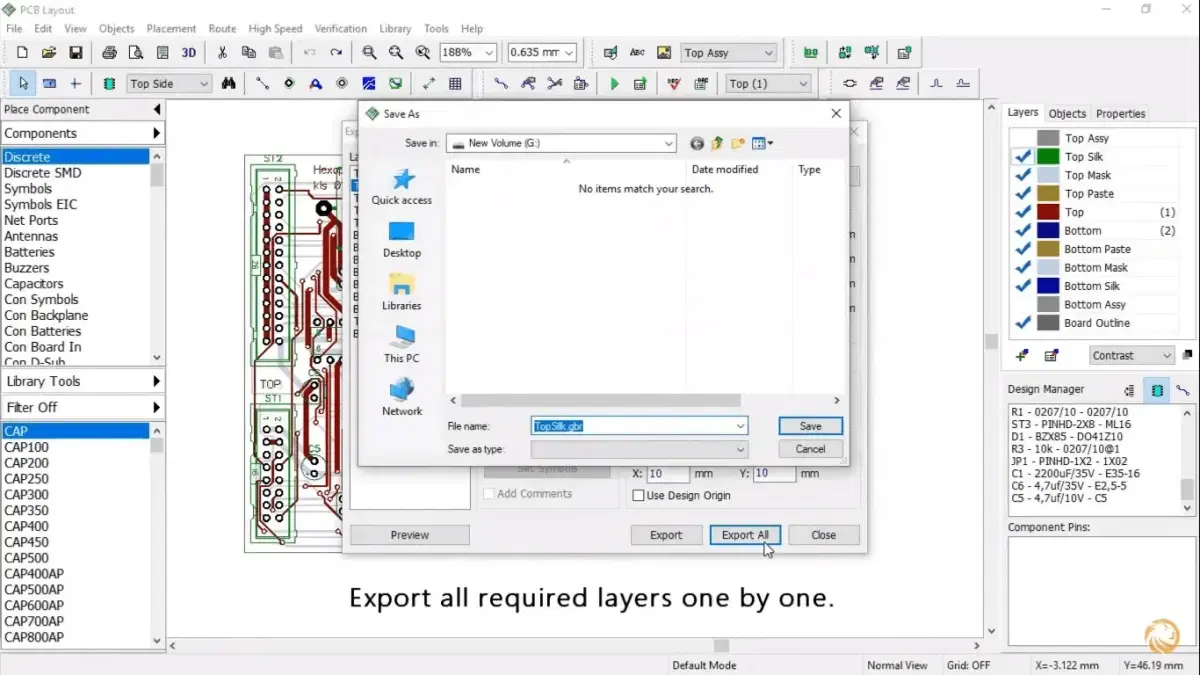

4) Here is an example for "Top Silk"of how it looks while you export an individual layer.

5

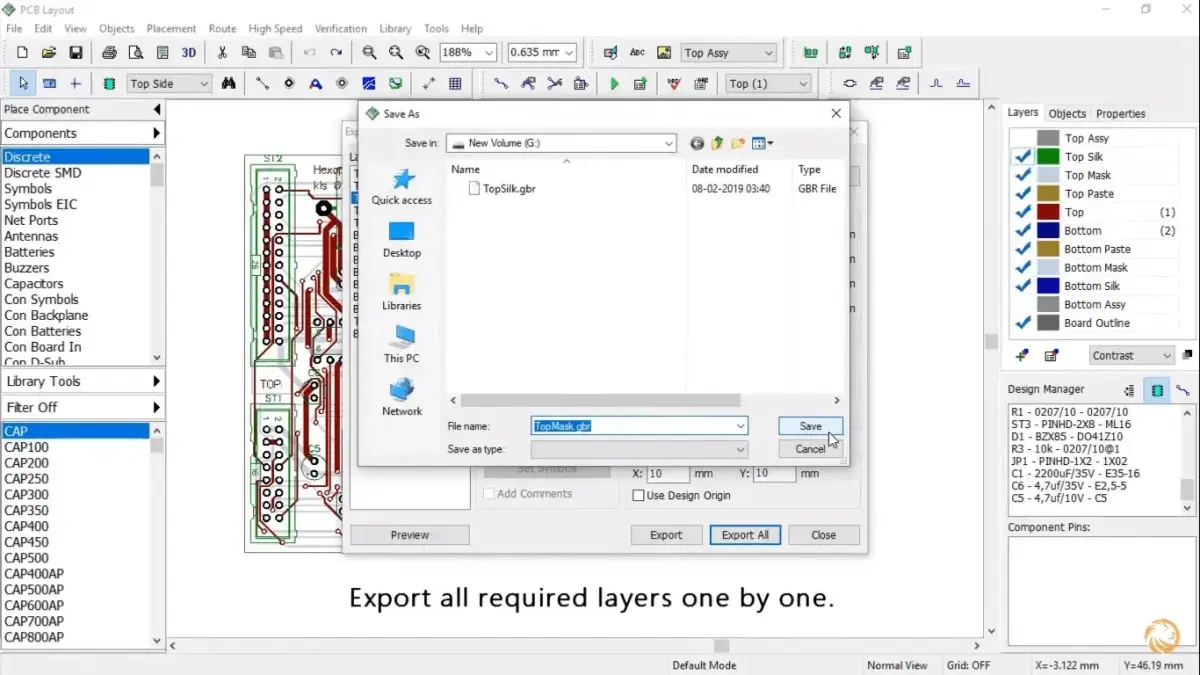

5) Here is an example for "Top Mask" of how it looks while you export an individual layer.

6

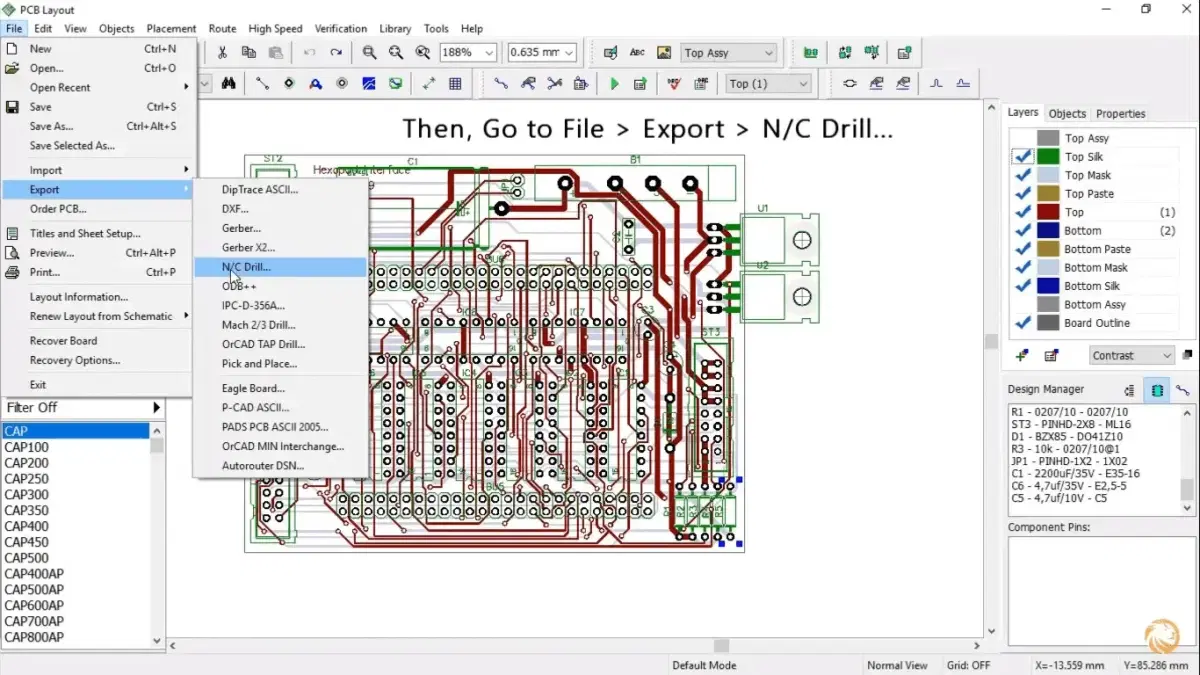

6) Then click on "File" > Export > "N/C Drill"

7

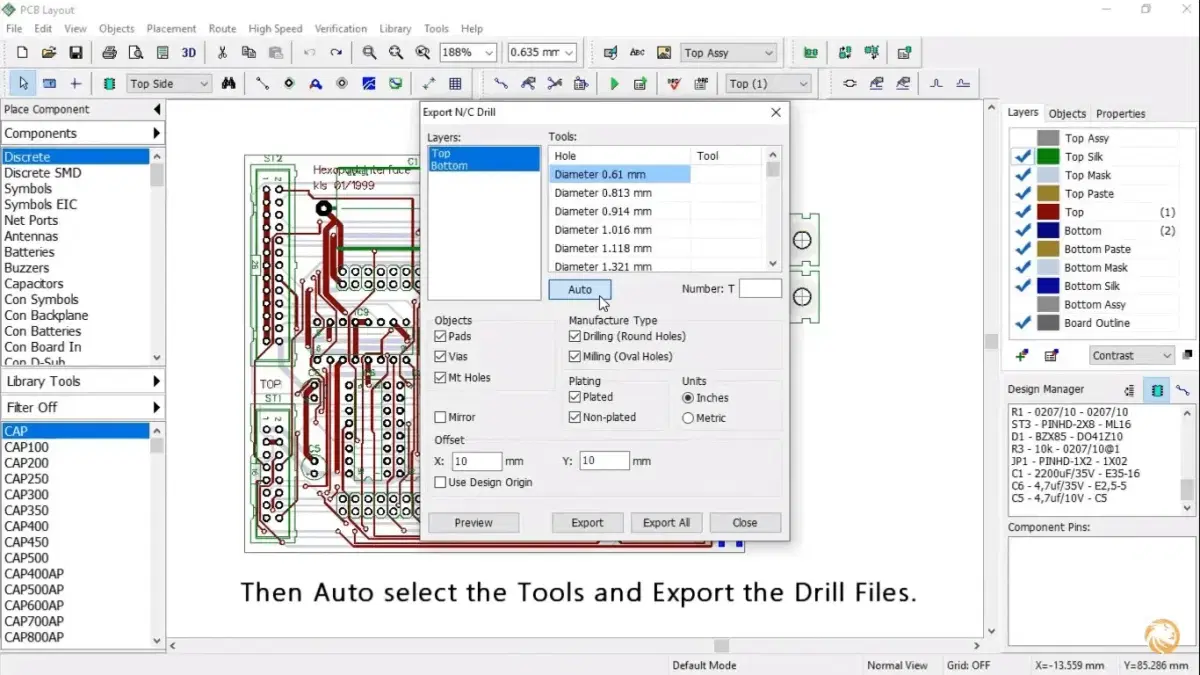

7) Then Auto select the tools and Export the Drill Files.

8

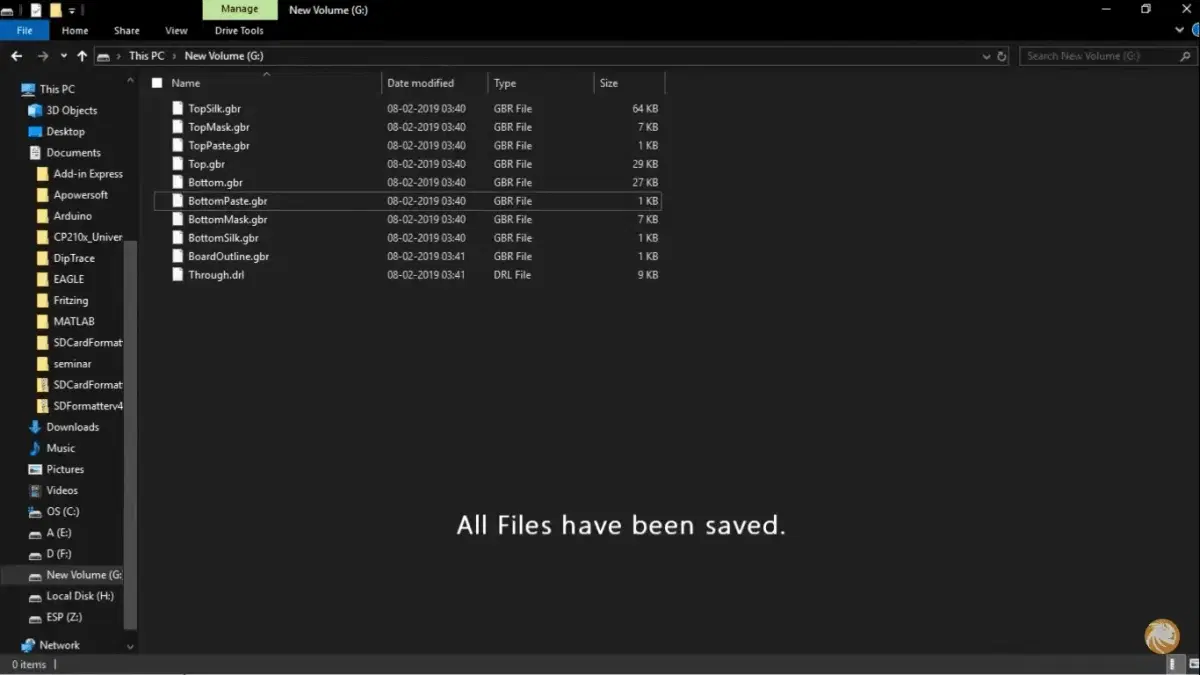

8) All files have been saved now.

9

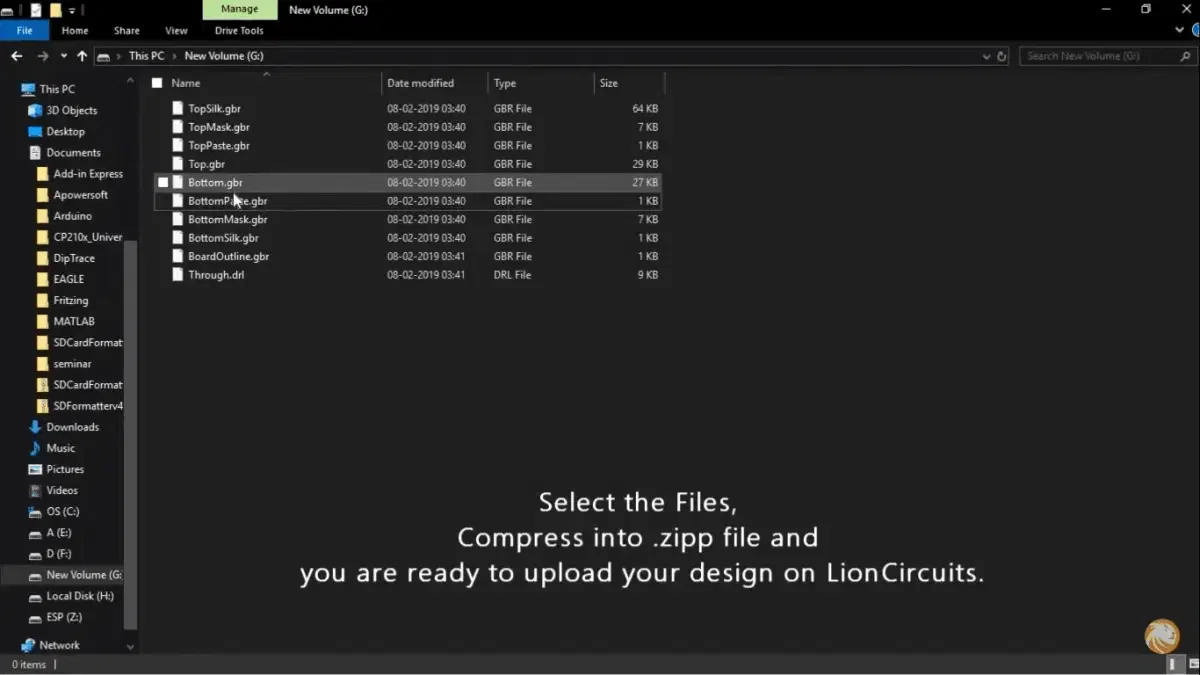

9) Select the files and compress them into .Zip file and you are ready to upload your design on Lion Circuits.

10
