09181109622
Manufacturer
HARTING Elektronik
Description

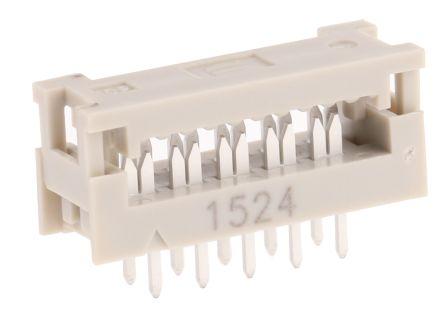

10 Position Ribbon Cable, DIP Header Connector - IDC - Through Hole
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Resistance
Current Rating
Depth
Flammability Rating
Gender
Height
Hole Diameter
Housing Color
Housing Material
Insulation Resistance
Lead Length
Lead Pitch
Length
Material
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
PCB Thickness
Pitch
REACH SVHC
RoHS
Row Spacing
Schedule B
Termination
Test Voltage
Width
Description
Grey
Cable, IDC
Nickel, Tin
15 mΩ
1 A
6.1 mm
UL94 V-0
Male
5.5 mm
1 mm
Grey
Polybutylene
10 MΩ
3.3 mm
2.54 mm
18 mm
PBT, Resin, Thermoplastic
1 A
105 °C
-55 °C
PCB, Through Hole
10
10
10
2
Straight
127 mm
2.54 mm
No
Compliant
2.54 mm
8536694040, 8536694040|8536694040|8536694040|8536694040|8536694040
Through Hole
1 kV
18 mm
₹134.50
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹134.50
₹134.50
10
₹116.02
₹1160.22
25
₹108.78
₹2719.38
50
₹103.56
₹5177.98
100
₹98.61
₹9860.95
500
₹88.02
₹44008.75
1000
₹83.81
₹83812.17
