09185406323
Manufacturer
HARTING Elektronik
Description

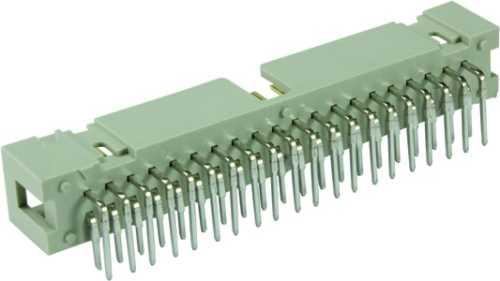

Conn Shrouded Header (4 Sides) HDR 40 POS 2.54mm Solder RA Side Entry Thru-Hole Standard
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Current Rating
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Fastening Type
Flammability Rating
Gender
Hole Diameter
Housing Material
Insulation Resistance
Lead Pitch
Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Poles
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Row Spacing
Termination
Test Voltage
Voltage Rating (AC)
Voltage Rating (DC)
Width
Working Voltage
Description
Grey
Male Pin
1 A
Brass, Gold
6.096 mm
Gold
20 mΩ
1 A
11.99 mm
Latch
UL94 V-0
Male
900 µm
Polyester
1 GΩ
2.54 mm
58.42 mm
105 °C
-40 °C
Through Hole
40
40
40
40
2
Right Angle
2.54 mm
No
Compliant
2.54 mm
Solder
1 kV
350 V
350 V
58.4 mm
350 V
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹451.54
Total Price
₹451.54
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹451.54
₹451.54
