09185407813
Manufacturer
HARTING Elektronik
Description

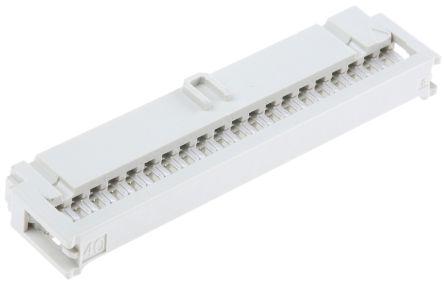

Right Angle Cable Mount IDC Connector Socket, 40 Way, 2 Row, 2.54mm Pitch | HARTING 09185407813
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Flammability Rating
Gender
Housing Color
Insulation Resistance
Lead Pitch
Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Poles
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating (AC)
Voltage Rating (DC)
Wire/Cable Type
Wire Gauge (Max)
Wire Gauge (Min)
Description
Grey
IDC, Receptacle, Socket
1 A
Female
Brass
Gold
20 mΩ
2 A
7.2 mm
UL94 V-0
Receptacle
Grey
1 GΩ
2.54 mm
55.4 mm
105 °C
-40 °C
Cable, Free Hanging
40
40
40
40
2
Right Angle
2.54 mm
No
Compliant
2.54 mm
IDT
350 V
350 V
Ribbon
28 AWG
26 AWG
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹437.57
Total Price
₹437.57
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹437.57
₹437.57
10
₹397.87
₹3978.72
25
₹397.87
₹9946.81
50
₹368.23
₹18411.51
100
₹350.25
₹35025.10
