1-111196-8
Manufacturer
TE Connectivity
Description

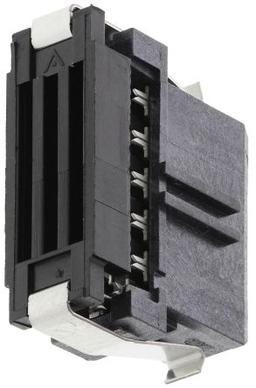

Conn IDC Connector RCP 20 POS 1.27mm IDT RA Side Entry Cable Mount Tray
Datasheet
DownloadProduct Attributes
Type
China RoHS
Circuit Application
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Plating
Contact Resistance
Current Rating
Depth
Dielectric Material
Fastening Type
Flammability Rating
Gender
Height
Housing Color
Housing Material
Insulation Resistance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Mating Connector Lock
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
Packaging
Pitch
Plating Thickness
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Sealable
Shape
Shielding
Terminal Pitch
Termination
Voltage Rating
Voltage Rating (AC)
Width
Wire/Cable Type
Wire Gauge (Max)
Wire Gauge (Min)
Description
Compliant
Signal
Black
Connector, Receptacle, Socket
500 mA
Female
Gold, Tin
30 mΩ
500 mA
6.45 mm
Polyethylene
Latch
UL94 V-0
Receptacle
12.319 mm
Black
Thermoplastic
5 GΩ
Lead Free
17.78 mm
Production (Last Updated: 3 days ago)
ACTIVE (Last Updated: 3 days ago)
Thermoplastic
With
105 °C
30 V
-65 °C
Cable, Free Hanging, Through Hole
20
20
1
20
2
30 V
Right Angle
Bulk
1.27 mm
762 nm
No
Yes
Compliant
2.54 mm
No
Rectangular
No
1.27 mm
IDT
30 V
30 V
6.45 mm
Ribbon
32 AWG
30 AWG
In Stock
Quantity
MOQ : 1
Per Unit Price
₹869.63
Total Price
₹869.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹869.63
₹869.63
10
₹867.59
₹8675.92
25
₹799.89
₹19997.22
50
₹730.60
₹36530.11
100
₹685.80
₹68580.44
500
₹645.70
₹322850.74
1000
₹624.25
₹624254.86
