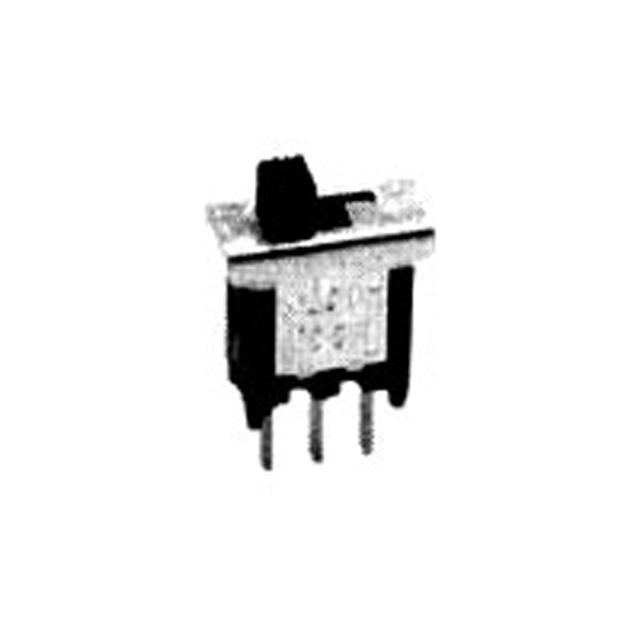

1-1437579-4
Manufacturer
TE Connectivity / AMP
Description
Switch Slide ON OFF ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
China RoHS
Color
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Electrical Life
Flammability Rating
Height
Insulation Resistance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Number of Positions
Orientation
Power Rating
REACH SVHC
RoHS
Sealable
Switch Function
Tail Length
Termination
Throw Configuration
Type
Width
Description
2.794 mm
Polyester
Non-Compliant
Black
400 mA
Copper
Gold
20 mΩ
20 V
60 kcycles
UL94 V-0
15.748 mm
1 GΩ
Contains Lead
10.2 mm
Production (Last Updated: 7 months ago)
400 mA
80 °C
20 V
20 V
-20 °C
Through Hole
2
2
Vertical
400 mW
Yes
Non-Compliant
EPOXY
On-Off-On
3.3 mm
PC Pin
SPDT
Switch
5.23 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
