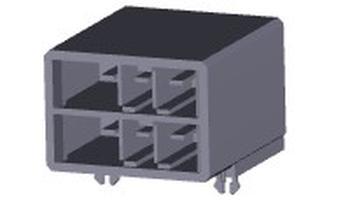

1-178140-5
Manufacturer
TE Connectivity
Description
Conn Header Hdr 6 Pos 5.08MM Solder St Thru-hole 6 Terminal 1 Port Tube
Datasheet
DownloadProduct Attributes
Type
Approvals
China RoHS
Color
Connector System
Connector Type
Contact Current Rating
Contact Gender
Contact Plating
Contact Retention
Contact Style
Current Rating
Depth
ELV
Flammability Rating
Gender
Halogen Free
Height
Housing Color
Housing Material
Insulation Resistance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Mating Alignment
Mating Retention
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Rows
Number of Terminals
Operating Force
Operating Supply Voltage
Orientation
Packaging
PCB Mounting Orientation
PCB Mount Retention
PCB Thickness
Pitch
Plating Thickness
Preloaded
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Sealable
Shielding
Tail Length
Terminal Pitch
Termination
VDE Tested
Voltage Rating
Width
Description
UL
Compliant
Black
Wire-to-Board
Header, Plug, Tab
8 A
Male
Gold, Tin
Without
Straight
8 A
16.97 mm
Compliant
UL94 V-0
Male
Halogen Free
21.59 mm
Black
Nylon
100 MΩ
Lead Free
24.1554 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
With
With
105 °C
600 V
-55 °C
Through Hole
6
6
1
6
2
6
4.8928 N
600 V
Vertical
Bulk
Vertical
With
1.6002 mm
5.08 mm
2.032 µm
Yes
No
Yes
Compliant
7.62 mm
No
No
3.8 mm
5.08 mm
Solder
No
600 V
16.9672 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹174.28
Total Price
₹174.28
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹174.28
₹174.28
10
₹153.56
₹1535.65
25
₹153.62
₹3840.45
50
₹153.58
₹7679.13
100
₹132.25
₹13225.07
500
₹128.67
₹64335.40
1000
₹126.92
₹126921.74
