10129381-906001BLF
Manufacturer
Amphenol ICC (FCI)
Description

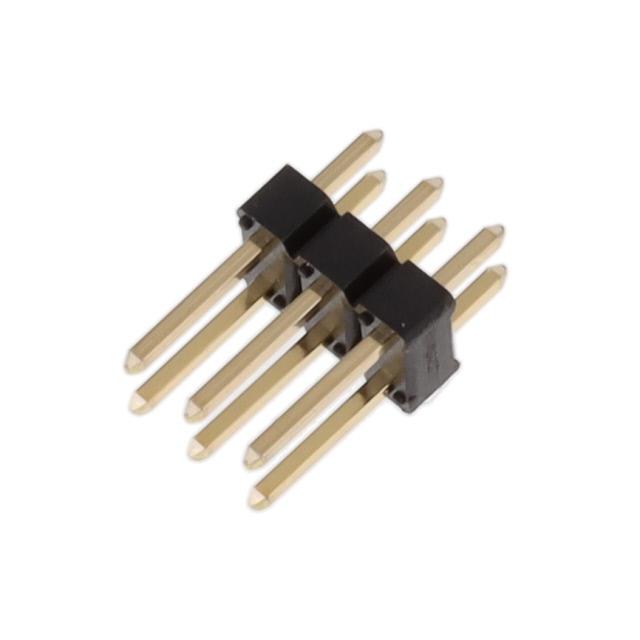

Connector Header Through Hole 6 position 0.100" (2.54mm)
Datasheet
DownloadProduct Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Contact Length - Post
Overall Contact Length
Insulation Height
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Material
Insulation Material
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Voltage Rating
Description
Header, Cuttable
Male Pin
0.100" (2.54mm)
6
2
0.100" (2.54mm)
All
Board to Board or Cable
Unshrouded
Through Hole
Solder
Push-Pull
0.230" (5.84mm)
0.120" (3.05mm)
0.450" (11.43mm)
0.100" (2.54mm)
Square
Gold
1.00µin (0.025µm)
Copper Alloy
Thermoplastic
-55°C ~ 105°C
UL94 V-0
Black
3A
110VDC
₹49.72
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹43.88
₹438.75
25
₹42.26
₹1056.52
50
₹42.26
₹2113.04
100
₹39.90
₹3989.96
500
₹36.91
₹18455.76
1000
₹34.92
₹34923.86
Product Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Contact Length - Post
Overall Contact Length
Insulation Height
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Material
Insulation Material
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Voltage Rating
Description
Header, Cuttable
Male Pin
0.100" (2.54mm)
6
2
0.100" (2.54mm)
All
Board to Board or Cable
Unshrouded
Through Hole
Solder
Push-Pull
0.230" (5.84mm)
0.120" (3.05mm)
0.450" (11.43mm)
0.100" (2.54mm)
Square
Gold
1.00µin (0.025µm)
Copper Alloy
Thermoplastic
-55°C ~ 105°C
UL94 V-0
Black
3A
110VDC
