10129382-912002BLF
Manufacturer
Amphenol ICC (FCI)
Description

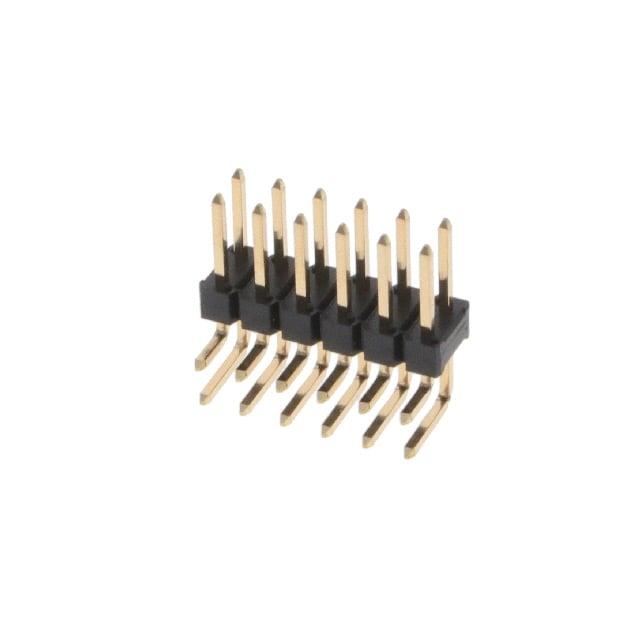

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
Datasheet
DownloadProduct Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Contact Length - Post
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Material
Insulation Material
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Voltage Rating
Description
Header, Cuttable
Male Pin
0.100" (2.54mm)
12
2
0.100" (2.54mm)
All
Board to Board or Cable
Unshrouded
Through Hole, Right Angle
Solder
Push-Pull
0.230" (5.84mm)
0.090" (2.29mm)
Square
Gold
1.00µin (0.025µm)
Copper Alloy
Thermoplastic
-55°C ~ 105°C
UL94 V-0
Black
3A
110VDC
₹146.57
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹146.57
₹146.57
10
₹124.13
₹1241.28
25
₹124.19
₹3104.72
50
₹124.15
₹6207.40
100
₹105.50
₹10550.33
500
₹94.17
₹47083.38
1000
₹94.17
₹94165.73
Product Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Contact Length - Post
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Material
Insulation Material
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Voltage Rating
Description
Header, Cuttable
Male Pin
0.100" (2.54mm)
12
2
0.100" (2.54mm)
All
Board to Board or Cable
Unshrouded
Through Hole, Right Angle
Solder
Push-Pull
0.230" (5.84mm)
0.090" (2.29mm)
Square
Gold
1.00µin (0.025µm)
Copper Alloy
Thermoplastic
-55°C ~ 105°C
UL94 V-0
Black
3A
110VDC
