10152265-1161HF
Manufacturer
Amphenol ICC (FCI)
Description

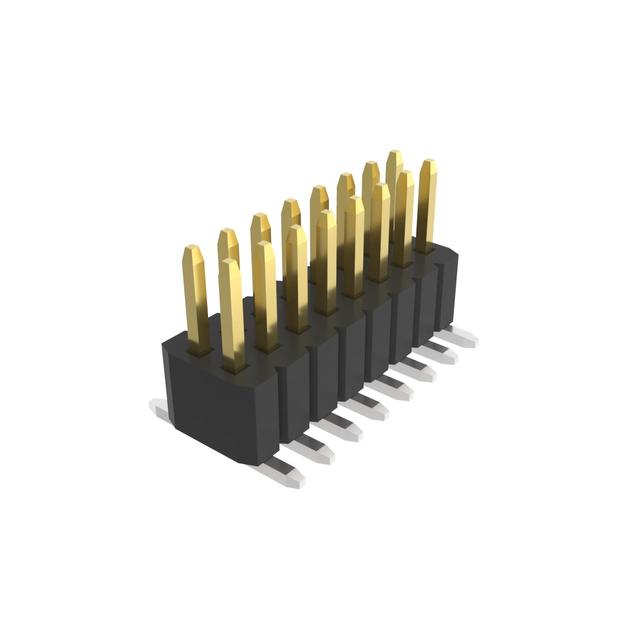

AMPHENOL COMMUNICATIONS SOLUTIONS - 10152265-1161HF - Pin Header, Board-to-Board, 1.27 mm, 2 Rows, 16 Contacts, Surface Mount Straight
Datasheet
DownloadProduct Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Insulation Height
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Location
Contact Material
Insulation Material
Features
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Voltage Rating
Description
Header
Male Pin
0.050" (1.27mm)
16
2
0.050" (1.27mm)
All
Board to Board
Unshrouded
Surface Mount
Solder
Push-Pull
0.120" (3.05mm)
0.098" (2.50mm)
Square
Gold
Flash
Tin
Brass
Polyamide (PA9T), Nylon 9T
Pick and Place
-40°C ~ 105°C
UL94 V-0
Black
1A per Contact
125VAC
₹118.07
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹118.07
₹118.07
10
₹118.07
₹1180.72
25
₹101.04
₹2525.91
50
₹101.04
₹5051.82
100
₹93.78
₹9377.95
500
₹77.69
₹38845.79
1000
₹70.26
₹70261.25
