103166-3
Manufacturer
TE Connectivity
Description

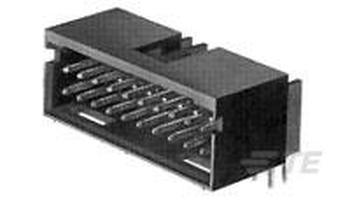

Conn Shrouded Header (4 Sides) M 10 POS 2.54mm Solder RA Side Entry Thru-Hole Automotive Tray
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Shape
Contact Style
Current Rating
Depth
Fastening Type
Flammability Rating
Gender
Height
High Speed Serial Data Connector
High Temperature Housing
Housing Color
Housing Material
Insulation Resistance
Keyed
Lead Free
Lead Length
Length
Lifecycle Status
Manufacturer Lifecycle Status
Mating Post Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
PCB Mounting Orientation
PCB Thickness
Pitch
Radiation Hardening
RoHS
Row Spacing
Shrouded End Dimension
Termination
Description
CSA
Black
Header, Pin, Plug
3 A
Male
Bronze
8.0772 mm
Gold
Square
Pin
3 A
16.23 mm
Detent
UL94 V-0
Male
10.49 mm
No
No
Black
Thermoplastic
5 GΩ
No
Contains Lead
3.429 mm
15.54 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
8.08 mm
105 °C
-65 °C
Through Hole
10
10
2
Right Angle
Bulk
Right Angle
1.397 mm
2.54 mm
No
Non-Compliant
2.54 mm
1.68 mm
Solder, Through Hole
In Stock
Quantity
MOQ : 1
Per Unit Price
₹308.55
Total Price
₹308.55
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹308.55
₹308.55
10
₹251.11
₹2511.10
25
₹251.07
₹6276.86
50
₹251.07
₹12553.73
100
₹251.07
₹25106.56
