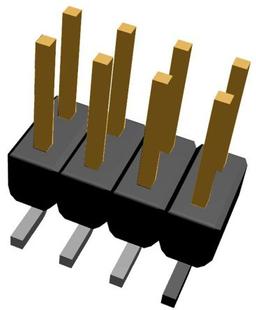

1241050-4

Manufacturer

TE Connectivity

Description

AMPMODU Mod II RoHS Compliant COMMERCIAL UL CSA Connector Header, Breakaway 105C 3A 250V Flash

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Connector Type

Contact Gender

Contact Material

Contact Mating Length

Contact Plating

Contact Shape

Contact Style

Current Rating

Gender

High Speed Serial Data Connector

High Temperature Housing

Housing Color

Housing Material

Insulation Resistance

Keyed

Lead Pitch

Lifecycle Status

Manufacturer Lifecycle Status

Mating Post Length

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Pins

Number of Poles

Number of Positions

Number of Rows

Orientation

PCB Mounting Orientation

Pitch

Plating Thickness

Radiation Hardening

REACH SVHC

RoHS

Row Spacing

Schedule B

Termination

Voltage Rating (AC)

Voltage Rating (DC)

Working Voltage

Description

Black

Header, Pin, Plug

Male

CuZn

5.7912 mm

Gold

Square

Pin

3 A

Male

No

No

Black

Polycyclohexylenedimethylene

5 GΩ

No

2.54 mm

Production (Last Updated: 4 days ago)

ACTIVE (Last Updated: 4 days ago)

5.8 mm

105 °C

-65 °C

Surface Mount

8

8

8

8

2

Vertical

Vertical

2.54 mm

800 nm

No

No

Compliant

2.54 mm

8536694040, 8536694040|8536694040, 8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040

SMD/SMT

250 V

250 V

250 V

In Stock

Quantity

MOQ : 1

Minimum Qty : 1

decrement quantity
increment quantity

Per Unit Price

₹378.46

Total Price

₹378.46

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹378.46

₹378.46

10

₹329.06

₹3290.61

25

₹329.10

₹8227.40

50

₹329.10

₹16454.79

100

₹325.92

₹32592.00

500

₹318.87

₹159433.55

1000

₹318.87

₹318867.10
