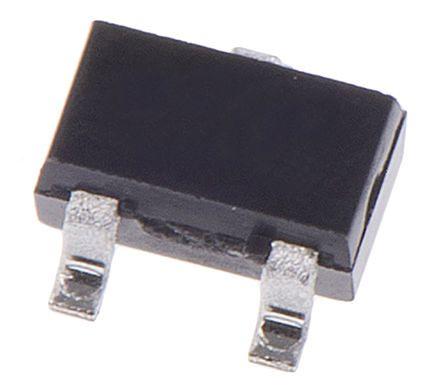

15C01M-TL-E
Manufacturer
onsemi
Description
Bipolar Transistor, 15V, 0.7A, Low VCE(sat) NPN Single MCP
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Element Configuration
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Pins
Packaging
Polarity
REACH SVHC
RoHS
Schedule B
Transition Frequency
Width
Description
SC
Compliant
20 V
15 V
150 mV
15 V
Tin Bismuth
Single
5 V
330 MHz
900 µm
300
Lead Free
2 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
15 V
700 mA
330 MHz
150 °C
300 mW
-55 °C
3
Tape and Reel
NPN
Yes
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
330 MHz
1.25 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹35.57
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹16.01
₹160.06
25
₹15.97
₹399.25
50
₹15.99
₹799.39
100
₹7.99
₹799.39
500
₹7.99
₹3996.07
1000
₹7.14
₹7135.83
