1658607-1
Manufacturer
TE Connectivity
Description

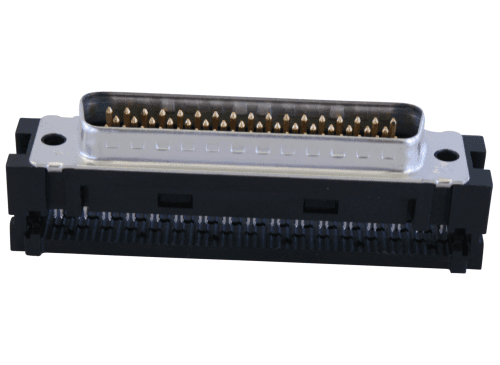

D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40unc, Plug
Datasheet
DownloadProduct Attributes
Type
Approvals
Body Material
Case/Package
China RoHS
Circuit Application
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Dielectric Material
ELV
Flammability Rating
Gender
Housing Color
Housing Material
Insulation Resistance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Operating Temperature
Max Supply Voltage (AC)
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Rows
Number of Terminals
Operating Force
Orientation
Pitch
Plating
Plating Thickness
Preloaded
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Sealable
Shell Finish
Shell Material
Shielding
Terminal Pitch
Termination
Voltage Rating
Width
Wire/Cable Diameter
Wire/Cable Type
Wire Gauge (Max)
Wire Gauge (Min)
Description
CSA, UL
Metal
Metal
Compliant
Signal
Black
Pin, Plug
1.25 A
Male
Bronze
Gold
25 mΩ
1.25 A
15.39 mm
Polyethylene
Compliant
UL94 V-0
Male
Black
Thermoplastic
1 GΩ
Lead Free
74.16 mm
Production (Last Updated: 6 days ago)
ACTIVE (Last Updated: 6 days ago)
Metal
105 °C
250 V
250 V
-55 °C
Cable, Free Hanging
50
50
1
50
3
50
4.0032 N
Right Angle
1.3716 mm
Tin
762 nm
Yes
No
Yes
Compliant
8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|85
No
Tin
Steel
No
2.77 mm
IDC, IDT
250 V
22.91 mm
970 µm
Ribbon
26 AWG
28 AWG
In Stock
Quantity
MOQ : 1
Per Unit Price
₹3011.72
Total Price
₹3011.72
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹3011.72
₹3011.72
10
₹2795.47
₹27954.67
25
₹2792.27
₹69806.65
50
₹2789.08
₹139454.13
100
₹2789.08
₹278908.25
