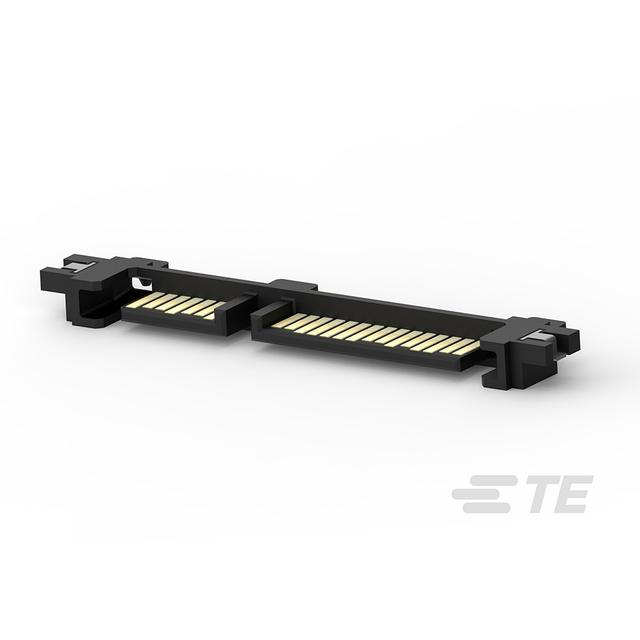

1735783-3
Manufacturer
TE Connectivity / AMP
Description
Telecom and Datacom Connector, 22 Contact(s), Straight, Surface Mount Terminal, Plug
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Circuit Application
Connector Type
Contact Current Rating
Contact Plating
Current Rating
Depth
Dielectric Material
ELV
Flammability Rating
Gender
Height
High Temperature Housing
Housing Color
Housing Material
Keyed
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Rows
Number of Terminals
Orientation
PCB Mounting Orientation
PCB Thickness
Pitch
Plating Thickness
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Shielding
Stackable
Terminal Pitch
Termination
Description
SMD/SMT
Compliant
Power
Plug
1.5 A
Gold, Tin
1.5 A
9.25 mm
Polyethylene
Compliant
UL94 V-0
Male
1.5 mm
Yes
Black
Thermoplastic
Yes
49.7 mm
Obsolete (Last Updated: 7 months ago)
1.5 A
85 °C
-40 °C
Surface Mount
22
22
2
22
1
22
Right Angle, Vertical
Vertical
1.2 mm
1.27 mm
762 nm
No
Yes
Compliant
8536695050
No
No
1.27 mm
Solder
Out of Stock
Quantity
MOQ : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
