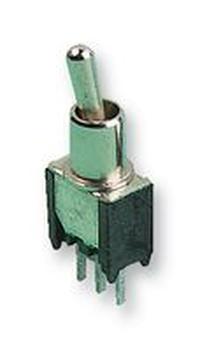

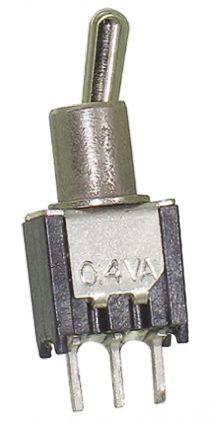

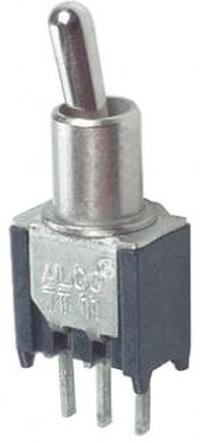

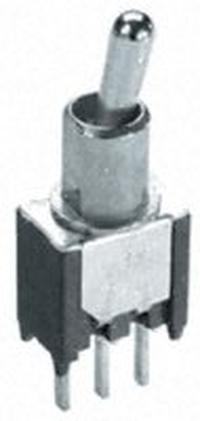

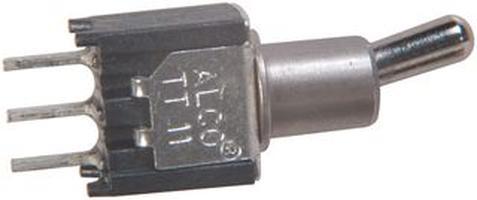

1825219-3
Manufacturer
TE Connectivity
Description
Switch Toggle ON None ON SPDT Baton Toggle PC Pins 3A 125VAC 28VDC 0.4W Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
Case/Package
China RoHS
Contact Current Rating
Contact Material
Contact Plating
Current Rating
Depth
Electrical Life
Flammability Rating
Height
Illumination Type
Insulation Resistance
Lead Free
Lifecycle Status
Material
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Positions
Power Rating
Radiation Hardening
REACH SVHC
RoHS
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
5.61 mm
Brass
125
Non-Compliant
3 A
Gold, Silver
Gold
3 A
23.22 mm
80 kcycles
UL94 V-0
8.84 mm
Illuminated, Non-Illuminated
1 GΩ
Lead Free
Production (Last Updated: 8 months ago)
Thermoplastic
3 A
85 °C
20 V
20 V
-30 °C
Brackets, PCB, Through Hole
2
400 mW
No
Yes
Compliant
On-On
PC Pins, PCB
SPDT
20 V
20 V
8.1 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1187.08
Total Price
₹1187.08
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1187.08
₹1187.08
10
₹1187.08
₹11870.82
25
₹1187.08
₹29677.05
50
₹1186.03
₹59301.64
100
₹1186.02
₹118602.38
