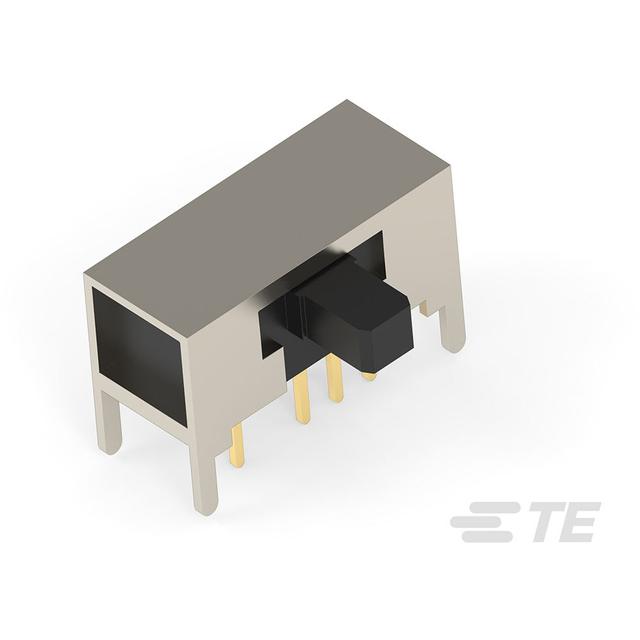

1825290-3
Manufacturer
TE Connectivity / AMP
Description
Switch Slide ON ON ON DP3T Side Slide 0.3A 125VAC PC Pins Bracket Mount/Through Hole Frame
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
China RoHS
Color
Contact Current Rating
Contact Plating
Contact Resistance
Contact Style
Contact Voltage Rating (AC)
Current Rating
Electrical Life
ELV
Flammability Rating
Height
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Operating Supply Voltage
Radiation Hardening
REACH SVHC
RoHS
Sealable
Switch Function
Switch Travel
Tail Length
Termination
Throw Configuration
Type
Voltage Rating (AC)
Width
Description
4.4958 mm
Polyoxymethylene
Compliant
Black
300 mA
Silver
30 mΩ
Shorting
125 V
300 mA
15 kcycles
Compliant
UL94 HB
7.5 mm
15 mm
15 kcycles
Production (Last Updated: 7 months ago)
20 mA
85 °C
125 V
20 V
15 kcycles
-20 °C
Through Hole
3
8.83 N
125 V
No
Yes
Compliant
EPOXY TERMINAL SEALED
On-On-On
2 mm
3.51 mm
PC Pin
DP3T
Switch
125 V
6.2 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹622.44
Total Price
₹622.44
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹622.44
₹622.44
10
₹504.71
₹5047.10
25
₹463.77
₹11594.28
50
₹463.79
₹23189.45
100
₹407.16
₹40715.58
500
₹352.28
₹176139.40
1000
₹329.05
₹329054.68
Product Attributes
Type
Actuator Length
Actuator Material
China RoHS
Color
Contact Current Rating
Contact Plating
Contact Resistance
Contact Style
Contact Voltage Rating (AC)
Current Rating
Electrical Life
ELV
Flammability Rating
Height
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Operating Supply Voltage
Radiation Hardening
REACH SVHC
RoHS
Sealable
Switch Function
Switch Travel
Tail Length
Termination
Throw Configuration
Type
Voltage Rating (AC)
Width
Description
4.4958 mm
Polyoxymethylene
Compliant
Black
300 mA
Silver
30 mΩ
Shorting
125 V
300 mA
15 kcycles
Compliant
UL94 HB
7.5 mm
15 mm
15 kcycles
Production (Last Updated: 7 months ago)
20 mA
85 °C
125 V
20 V
15 kcycles
-20 °C
Through Hole
3
8.83 N
125 V
No
Yes
Compliant
EPOXY TERMINAL SEALED
On-On-On
2 mm
3.51 mm
PC Pin
DP3T
Switch
125 V
6.2 mm
