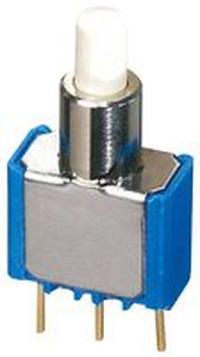

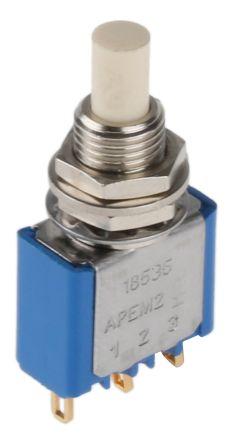

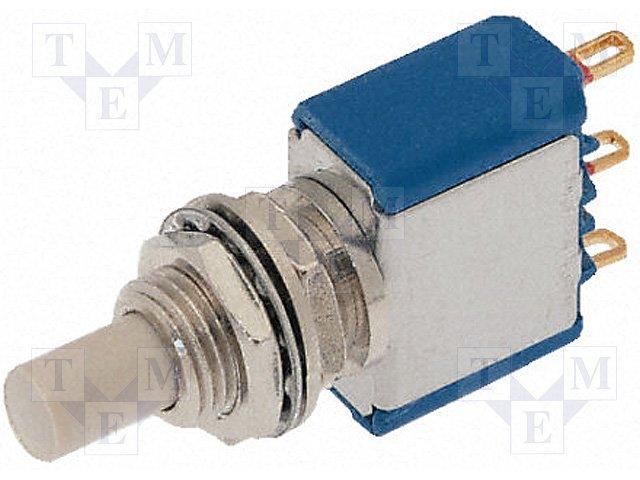

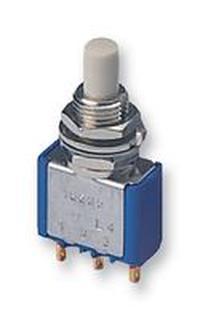

18535CD
Manufacturer
APEM
Description
Switch, P/b, SPDT, On-mom, Round Actuator, Brass/gold, 0.1A, 30VDC, Solder
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Contact Current Rating
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Contact Voltage Rating (DC)
Current Rating
Electrical Life
Hole Diameter
Housing Material
Insulation Resistance
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Number of Positions
Orientation
REACH SVHC
RoHS
Switch Function
Termination
Throw Configuration
Voltage Rating (DC)
Description
Glass, Polyamide
100 mA
Gold
50 mΩ
125 V
30 V
100 mA
60 kcycles
6.5 mm
Stainless Steel
1 GΩ
13.2 mm
100 mA
65 °C
30 V
-30 °C
Bushing, Panel
1
2
Straight
No
Compliant
On-Mom
Solder
SP, SPDT
30 V
₹629.30
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹629.30
₹629.30
10
₹579.08
₹5790.80
25
₹571.67
₹14291.69
50
₹564.24
₹28212.13
100
₹564.24
₹56424.27
500
₹564.24
₹282121.35
