1990863
Manufacturer
Phoenix Contact
Description

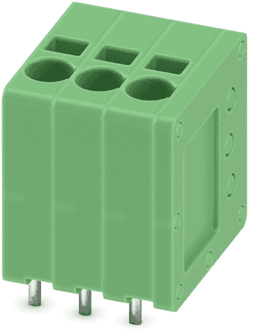

Conn PC Terminal Block 3 POS 3.5mm Solder ST Thru-Hole 17.5A Cardboard
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Current
Current Rating
Depth
Housing Color
Housing Material
Length
Max Current Rating
Max Supply Voltage
Mount
Number of Circuits
Number of Contacts
Number of Levels
Number of Poles
Number of Positions
Number of Positions Per Level
Number of Rows
Orientation
Pitch
RoHS
Termination
Voltage
Voltage Rating
Weight
Width
Wire Gauge (Max)
Wire Gauge (Min)
Description
CB, UL
Green
10 A
17.5 A
13.5 mm
Green
Polyamide
11.9 mm
17.5 A
160 V
Through Hole
3
3
1
3
3
3
1
Straight
3.5 mm
Compliant
Solder
300 V
200 V
3.083011 g
14.4 mm
24 AWG
16 AWG
In Stock
Quantity
MOQ : 1
Per Unit Price
₹146.72
Total Price
₹146.72
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹146.72
₹146.72
10
₹144.23
₹1442.28
25
₹144.19
₹3604.82
50
₹144.19
₹7209.63
100
₹138.65
₹13865.30
500
₹138.65
₹69327.37
1000
₹138.65
₹138653.85
