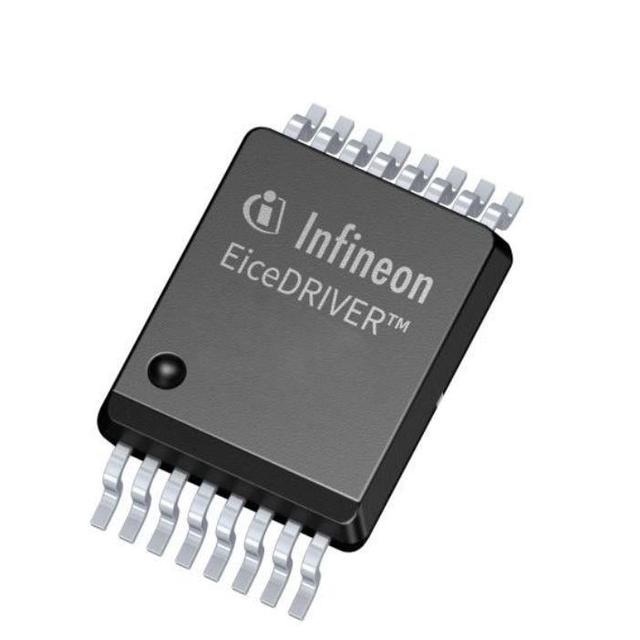

1ED3461MC12MXUMA1
Manufacturer
Infineon
Description
INFINEON - 1ED3461MC12MXUMA1 - Gate Driver, IGBT, High Side, 3 V to 5.5 V Supply, 6 A Out, SOIC-16, -40 C to 125 C
Datasheet
DownloadProduct Attributes
Type
Technology
Number of Channels
Isolation Voltage
Common Mode Transient Immunity (Min)
Propagation Delay tpLH / tpHL (Max)
Rise / Fall Time (Typ)
Current - Output High, Low
Output Current
Voltage - Output Supply
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Approval Agency
Description
Magnetic Coupling
1
5700Vrms
200V/ns
270ns, 262ns
15ns, 15ns
6A, 6A
6A
13V ~ 25V
-40°C ~ 125°C
Surface Mount
16-BSSOP (0.295", 7.50mm Width)
PG-DSO-16-28
UL, VDE
₹713.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹713.85
₹713.85
10
₹543.95
₹5439.48
25
₹493.22
₹12330.40
50
₹474.21
₹23710.33
100
₹455.20
₹45519.74
500
₹424.76
₹212377.88
1000
₹421.86
₹421861.00
Product Attributes
Type
Technology
Number of Channels
Isolation Voltage
Common Mode Transient Immunity (Min)
Propagation Delay tpLH / tpHL (Max)
Rise / Fall Time (Typ)
Current - Output High, Low
Output Current
Voltage - Output Supply
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Approval Agency
Description
Magnetic Coupling
1
5700Vrms
200V/ns
270ns, 262ns
15ns, 15ns
6A, 6A
6A
13V ~ 25V
-40°C ~ 125°C
Surface Mount
16-BSSOP (0.295", 7.50mm Width)
PG-DSO-16-28
UL, VDE
