1N1206AR
Manufacturer
GeneSiC Semiconductor
Description

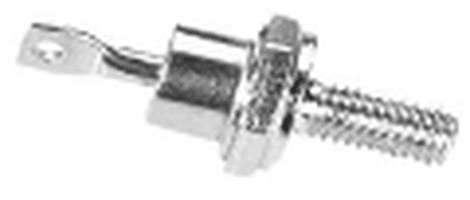

600V 12A DO-4 Silicon Stud Rectifier - Standard Recovery (Reverse Configuration)
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Body Material
Element Configuration
Forward Current
Forward Voltage
Harmonized Tariff Schedule (HTS) Code
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Description
12 A
Metal
Single
12 A
1.1 V
8541.10.0080
Production (Last Updated: 4 years ago)
PRODUCTION (Last Updated: 4 years ago)
240 A
150 °C
12 A
600 V
600 V
240 A
-55 °C
Stud
1
2
1
240 A
10 µA
No
Yes
600 V
600 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
