1N4007G

Manufacturer

onsemi

Description

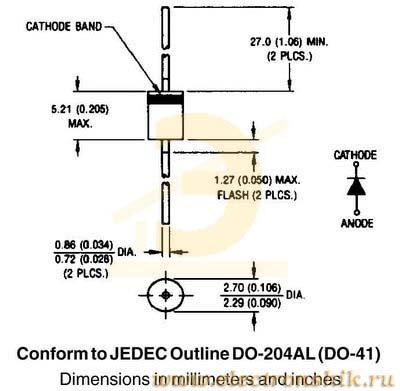

Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL

Datasheet

download datasheetDownload

Product Attributes

Type

Average Rectified Current

Breakdown Voltage

Contact Plating

Current Rating

Diameter

Element Configuration

Forward Current

Forward Voltage

Halogen Free

Height

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Forward Surge Current (Ifsm)

Max Operating Temperature

Max Repetitive Reverse Voltage (Vrrm)

Max Reverse Voltage (DC)

Max Surge Current

Min Operating Temperature

Number of Pins

Output Current

Packaging

Peak Non-Repetitive Surge Current

Peak Reverse Current

Polarity

Radiation Hardening

REACH SVHC

Reverse Voltage

RoHS

Schedule B

Voltage Rating (DC)

Weight

Width

Description

1 A

1 kV

Tin

1 A

2.7 mm

Single

1 A

1.1 V

Halogen Free

5.2 mm

Lead Free

5.1816 mm

Production (Last Updated: 3 years ago)

ACTIVE (Last Updated: 3 years ago)

30 A

175 °C

1 kV

1 kV

30 A

-65 °C

2

1 A

Bulk

30 A

10 µA

Standard

No

No SVHC

1 kV

Compliant

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|85

1 kV

4.535924 g

6.35 mm
