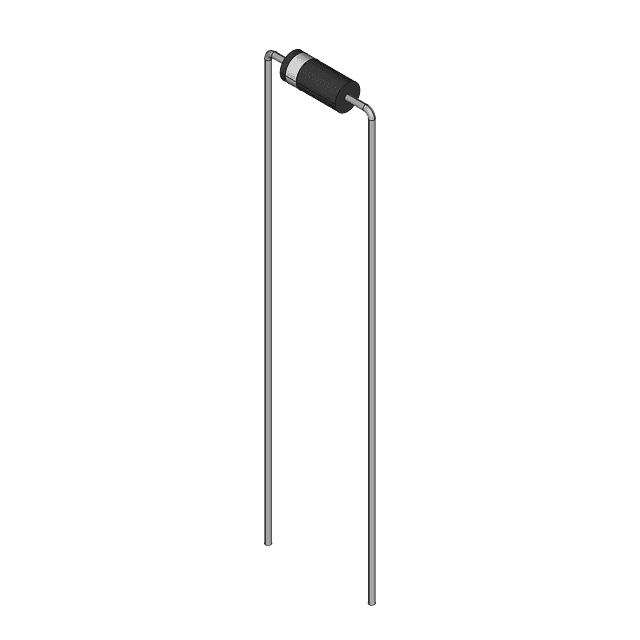

1N5224B
Product Attributes
Type
Body Material
Contact Plating
Element Configuration
ESD Protection
Height
Impedance
Lead Free
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reference Voltage
Reverse Voltage
RoHS
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Zener Current
Zener Voltage
Description
Glass
Tin
Single
No
1.91 mm
30 Ω
Lead Free
Production (Last Updated: 9 months ago)
200 °C
200 °C
500 mW
75 µA
-65 °C
Through Hole
1
2
2
Bulk
Unidirectional
500 mW
500 mW
No
Yes
2.8 V
1 V
Compliant
20 mA
5 %
2.8 V
5 %
80 g
20 mA
2.8 V
In Stock
Quantity
MOQ : 9
Minimum Qty : 9
Per Unit Price
₹12.64
Total Price
₹113.80
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.16
₹111.16
10
₹10.67
₹106.66
25
₹8.26
₹206.44
50
₹8.26
₹412.87
100
₹5.18
₹517.85
500
₹5.18
₹2591.90
1000
₹2.54
₹2538.97
