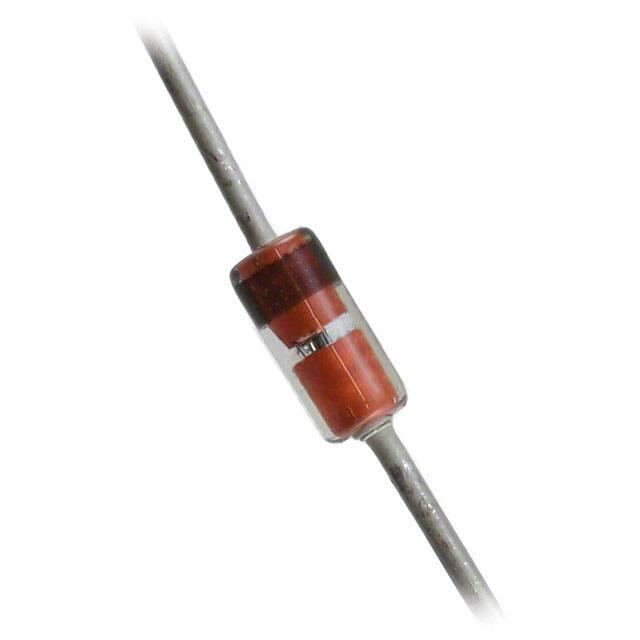

1N5251BTR
Manufacturer
onsemi
Description
1N5251 Series 500 mW 22 V 200 mA Through Hole Zener Diode - DO-35
Datasheet
DownloadProduct Attributes
Type
Body Material
China RoHS
Contact Plating
Diameter
Element Configuration
ESD Protection
Forward Voltage
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Reverse Current
Polarity
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reference Voltage
RoHS
Schedule B
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Working Voltage
Zener Current
Zener Voltage
Description
Glass
Non-Compliant
Tin
1.91 mm
Single
No
1.2 V
29 Ω
Lead Free
4.56 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
200 °C
500 mW
100 nA
-65 °C
Through Hole
1
2
2
100 nA
Unidirectional
500 mW
500 mW
No
Yes
22 V
Compliant
8541100050, 8541100050|8541100050, 8541100050|8541100050|8541100050, 8541100050|8541100050|8541100050|8541100050
5.6 mA
5 %
22 V
5 %
80 g
22 V
5.6 mA
22 V
In Stock
Quantity
MOQ : 8
Minimum Qty : 8
Per Unit Price
₹13.78
Total Price
₹110.28
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.92
₹112.92
10
₹10.97
₹109.66
25
₹10.07
₹251.87
50
₹10.04
₹501.97
100
₹4.13
₹412.87
500
₹4.07
₹2037.00
1000
₹4.02
₹4021.07
