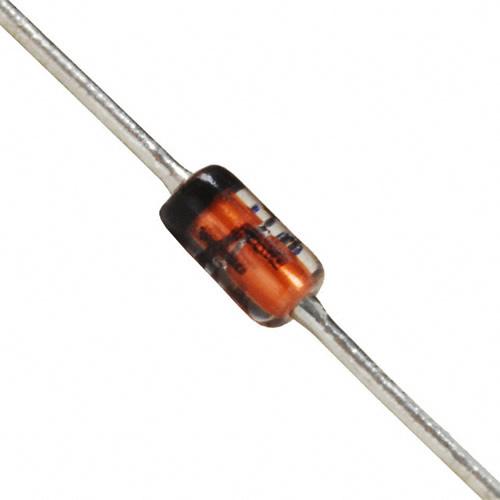

1N5252B
Manufacturer
onsemi
Description
1N5252 Series 500 mW 24 V 200 mA Through Hole Zener Diode - DO-35
Datasheet
DownloadProduct Attributes
Type
Body Material
Breakdown Voltage
China RoHS
Contact Plating
Element Configuration
ESD Protection
Forward Voltage
Height
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Reverse Current
Polarity
Power Dissipation
Power Rating
REACH SVHC
Reference Voltage
RoHS
Schedule B
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Weight
Width
Working Voltage
Zener Current
Zener Voltage
Description
Glass
24 V
Non-Compliant
Tin
Single
No
1.2 V
6.35 mm
33 Ω
Lead Free
50.8 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
200 °C
500 mW
100 nA
-65 °C
Through Hole
1
2
2
Bulk
100 nA
Unidirectional
500 mW
500 mW
Yes
24 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
5.2 mA
5 %
24 V
5 %
80 g
6.35 mm
24 V
5.2 mA
24 V
In Stock
Quantity
MOQ : 9
Minimum Qty : 9
Per Unit Price
₹11.64
Total Price
₹104.74
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹102.99
₹102.99
10
₹10.30
₹102.98
25
₹6.51
₹162.83
50
₹6.51
₹325.65
100
₹2.85
₹285.19
500
₹2.59
₹1293.01
1000
₹2.32
₹2322.85
