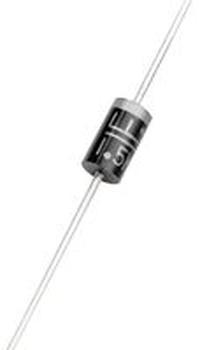

1N5406-E3/54
Manufacturer
Vishay
Description

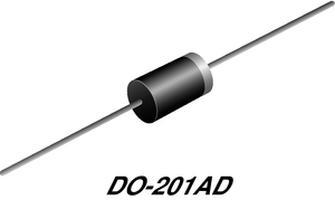

Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-201AD
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
China RoHS
Contact Plating
Diameter
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Width
Description
3 A
30 pF
Non-Compliant
Tin
5.3 mm
Single
3 A
1.2 V
5.3 mm
9.4996 mm
Production (Last Updated: 9 months ago)
200 A
150 °C
150 °C
3 A
600 V
600 V
200 A
-50 °C
Through Hole
1
2
2
3 A
Cut Tape
200 A
5 µA
Standard
No
No
600 V
600 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
5.3 mm
In Stock
Quantity
MOQ : 4
Minimum Qty : 4
Per Unit Price
₹30.23
Total Price
₹120.93
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹120.93
₹120.93
10
₹24.55
₹245.46
25
₹24.55
₹613.65
50
₹24.55
₹1227.29
100
₹20.53
₹2053.33
500
₹16.19
₹8094.55
1000
₹13.55
₹13546.20
