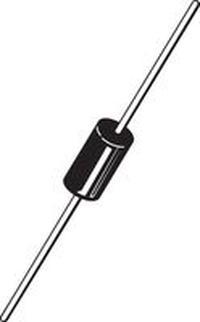

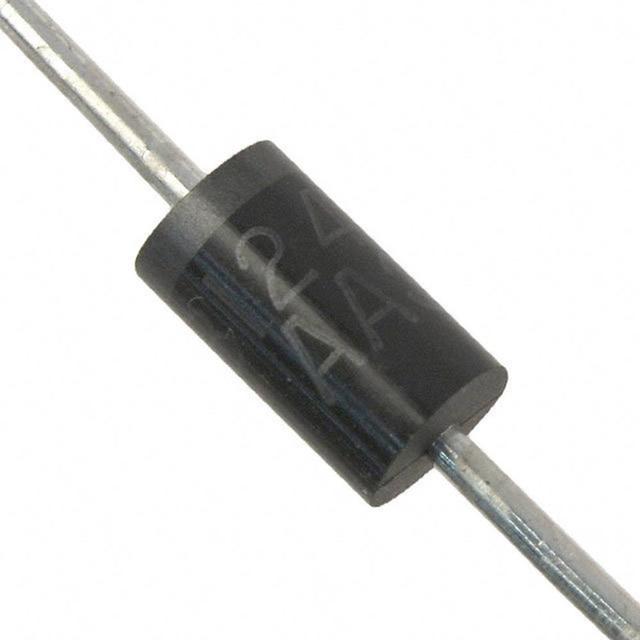

1N5821
Manufacturer
onsemi
Description
DIODE SCHOTTKY 30V 3A DO201AD / VOLTAGE 20V ~ 40V 3.0AMP Schottky Barrier Rectifiers
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
China RoHS
Contact Plating
Current Rating
Diameter
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Weight
Width
Description
3 A
190 pF
Non-Compliant
Tin
3 A
5.6 mm
Single
3 A
900 mV
5.6 mm
Lead Free
9.5 mm
Obsolete (Last Updated: 6 months ago)
OBSOLETE (Last Updated: 6 months ago)
80 A
100 °C
3 A
3.6 W
30 V
2 mA
30 V
80 A
-65 °C
Through Hole
1
2
2
3 A
Cut Tape
80 A
500 µA
Standard
No
No
30 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
30 V
360 mg
5.3 mm
Out of Stock
Quantity
MOQ : 5
Minimum Qty : 5
Per Unit Price
₹39.59
Total Price
₹197.97
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹197.97
₹197.97
10
₹31.94
₹319.42
25
₹31.94
₹798.55
50
₹31.94
₹1597.09
100
₹26.71
₹2671.22
500
₹22.78
₹11388.96
1000
₹21.85
₹21854.34
