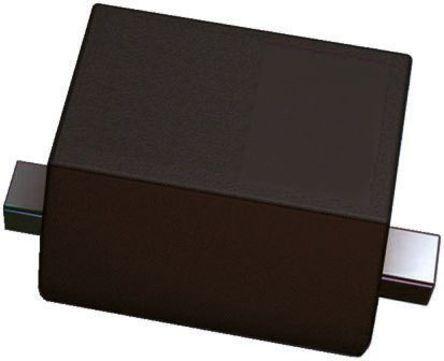

1N914BWT
Manufacturer
onsemi
Description
Diode, high conductance, fast switching, MLS 1, 300mA, 75V, SOD523 | ON Semiconductor 1N914BWT
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
China RoHS
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Reverse Current
Power Dissipation
Radiation Hardening
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Weight
Description
200 mA
4 pF
Compliant
Tin
Single
300 mA
720 mV
700 µm
Lead Free
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
150 °C
150 mA
200 mW
75 V
5 µA
75 V
-55 °C
Surface Mount
1
2
2
5 µA
200 mW
No
Yes
4 ns
4 ns
75 V
100 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
10 mg
In Stock
Quantity
MOQ : 20
Minimum Qty : 20
Per Unit Price
₹5.21
Total Price
₹104.10
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.86
₹105.86
10
₹10.41
₹104.10
25
₹5.21
₹130.13
50
₹5.19
₹259.37
100
₹3.08
₹308.27
500
₹2.47
₹1235.45
1000
₹2.47
₹2470.91
