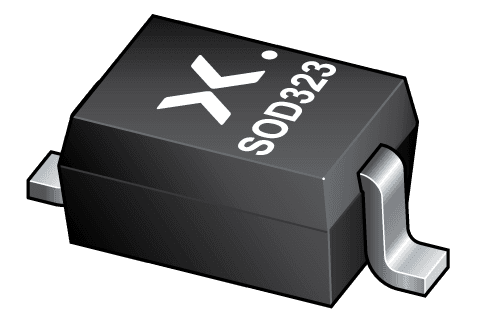

1PS76SB10,135
Manufacturer
Nexperia
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.2A, 30V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Contact Plating
Current
Element Configuration
Forward Current
Forward Voltage
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Voltage
Description
200 mA
Tin
2 A
Single
200 mA
800 mV
Lead Free
Production (Last Updated: 7 months ago)
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
125 °C
200 mA
30 V
2 µA
30 V
300 mA
-55 °C
Surface Mount
1
2
2
Tape & Reel (TR)
600 mA
2 µA
No
Yes
30 V
Compliant
8541100070
30 V
In Stock
Quantity
MOQ : 7
Minimum Qty : 7
Per Unit Price
₹15.09
Total Price
₹105.62
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.74
₹104.74
10
₹10.94
₹109.41
25
₹10.00
₹249.98
50
₹9.98
₹499.07
100
₹6.22
₹622.30
500
₹4.95
₹2473.36
1000
₹4.05
₹4049.80
