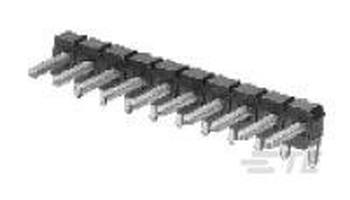

2-826947-0
Manufacturer
TE Connectivity
Description
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Side Entry Thru-Hole Carton
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Shape
Contact Style
ELV
Flammability Rating
High Speed Serial Data Connector
High Temperature Housing
Housing Color
Housing Material
Insulation Resistance
Keyed
Lead Free
Lead Length
Lifecycle Status
Manufacturer Lifecycle Status
Mating Post Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
PCB Mounting Orientation
Pitch
Plating Thickness
Radiation Hardening
RoHS
Row Spacing
Termination
Description
Green
Header, Pin, Plug
5 A
Male
Brass
6.7056 mm
Tin
Square
Pin
Compliant
UL94 V-0
No
No
Green
PBT
5 GΩ
No
Lead Free
3.19786 mm
Production (Last Updated: 2 weeks ago)
ACTIVE (Last Updated: 2 weeks ago)
6.7 mm
105 °C
-65 °C
Through Hole
20
20
1
Right Angle
Carton
Right Angle
2.54 mm
2 µm
No
Compliant
2.54 mm
Through Hole
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹191.44
Total Price
₹191.44
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹191.44
₹191.44
10
₹176.70
₹1767.05
25
₹176.72
₹4418.06
50
₹165.08
₹8253.86
100
₹165.08
₹16507.73
