2214869-1
Manufacturer
TE Connectivity / AMP
Description

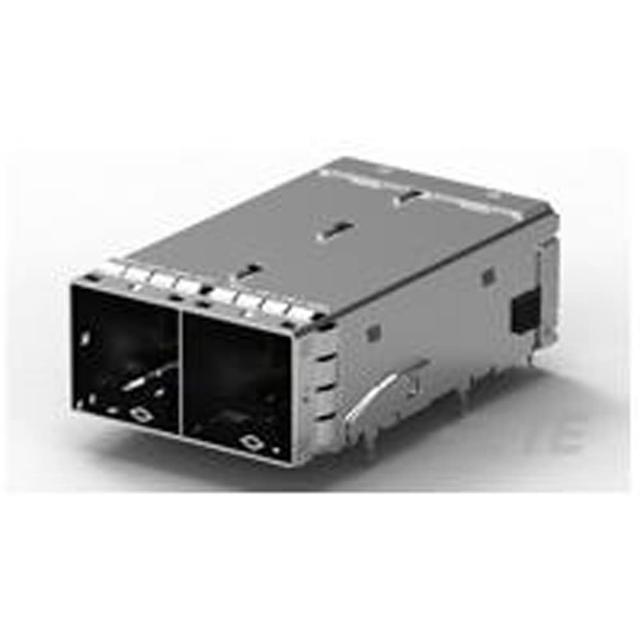

I/O Connector, 72 Contacts, Receptacle, Mini SAS HD, Press Fit, PCB Mount
Datasheet
DownloadProduct Attributes
Type
China RoHS
Circuit Application
Connector Type
Contact Gender
Contact Plating
Dielectric Material
ELV
Features
Flammability Rating
High Temperature Housing
Housing Color
Housing Material
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Rows
Orientation
PCB Mounting Orientation
PCB Thickness
Pitch
REACH SVHC
RoHS
Row Spacing
Shielding
Stackable
Terminal Pitch
Termination
Description
Compliant
Signal
Receptacle
Female
Nickel, Tin
Liquid Crystal Polymer
Compliant
Shielded
UL94 V-0
Yes
Black
Polymer
Production (Last Updated: 8 months ago)
85 °C
-55 °C
Panel, Press Fit, Through Hole
72
72
2
72
12
Right Angle
Right Angle
970 µm
736.6 µm
Yes
Compliant
1.5 mm
No
No
750 µm
Press-Fit
In Stock
Quantity
MOQ : 1
Per Unit Price
₹2094.95
Total Price
₹2094.95
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2094.95
₹2094.95
10
₹1779.82
₹17798.23
25
₹1668.42
₹41710.59
50
₹1588.11
₹79405.56
100
₹1512.40
₹151239.58
