2305-1HDCGI8
Manufacturer
Renesas
Description

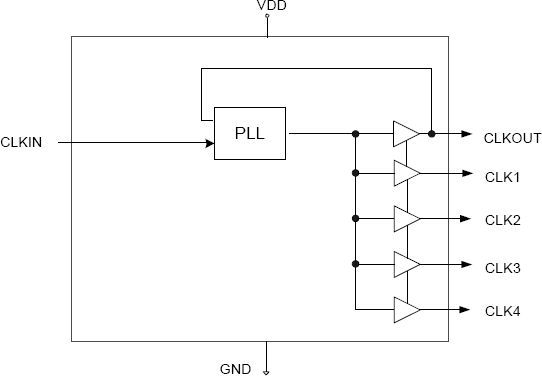

PLL Based Clock Driver, 2305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height
Height - Seated (Max)
Harmonized Tariff Schedule (HTS) Code
Input
Lead Free
Length
Lifecycle Status
Low Level Output Current
Manufacturer Lifecycle Status
Max Frequency
Max Input Voltage
Max Operating Temperature
Max Output Frequency
Max Power Dissipation
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Circuits
Number of Elements
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Package Quantity
Packaging
Pitch
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Terminal Pitch
Thickness
Width
Description
SOIC
Compliant
Tin
1.5 mm
1.75 mm
8542390001
LVTTL
Lead Free
4.9 mm
Production (Last Updated: 3 months ago)
12 mA
ACTIVE (Last Updated: 3 months ago)
133 MHz
3.6 V
85 °C
133 MHz
700 mW
3.6 V
3 V
-40 °C
3 V
Surface Mount
35 mA
1
1
5
8
8
3.3 V
3000
Tape & Reel (TR)
1.27 mm
350 ps
No
Yes
Compliant
1.27 mm
1.5 mm
3.9 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹104.04
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹102.08
₹1020.80
25
₹102.06
₹2551.56
50
₹102.06
₹5103.12
100
₹97.81
₹9781.20
500
₹94.60
₹47301.88
1000
₹91.51
₹91512.02
