293D105X9020A2TE3

Manufacturer

Vishay

Description

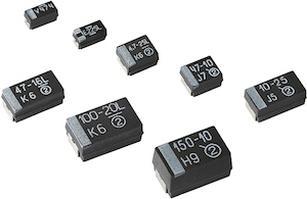

Cap Tant Solid 1uF 20V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 8.4 Ohm 125 C T/R

Datasheet

download datasheetDownload

Product Attributes

Type

Capacitance

Case/Package

Case Code (Imperial)

Case Code (Metric)

Depth

Dielectric Material

Dissipation Factor

ESR (Equivalent Series Resistance)

Features

Height

Height - Seated (Max)

Lead Free

Leakage Current

Length

Max Operating Temperature

Min Operating Temperature

Mount

Number of Pins

Polarity

Q Factor

Radiation Hardening

REACH SVHC

Ripple Current

RoHS

Schedule B

Termination

Tolerance

Voltage

Voltage Rating

Voltage Rating (DC)

Width

Description

1 µF

3216-18

1206

3216

1.6 mm

Tantalum

4 %

8.4 Ω

General Purpose

1.6 mm

1.8034 mm

Lead Free

500 nA

3.2 mm

125 °C

-55 °C

PCB, Surface Mount

2

Polar

4

No

Unknown

90 mA

Compliant

8532210050, 8532210050|8532210050, 8532210050|8532210050|8532210050, 8532210050|8532210050|8532210050|8532210050

SMD/SMT

20 %

20 V

20 V

20 V

1.6 mm

In Stock

Quantity

MOQ : 3

decrement quantity
increment quantity

Per Unit Price

₹39.13

Total Price

₹117.38

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹117.38

₹117.38

10

₹25.52

₹255.20

25

₹25.50

₹637.56

50

₹16.82

₹841.02

100

₹16.82

₹1682.04

500

₹10.92

₹5462.35

1000

₹13.29

₹13291.76
