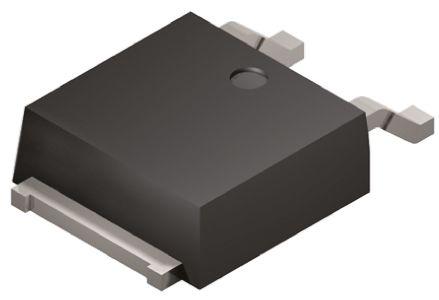

2SA2040-TL-E
Manufacturer
onsemi
Description
Bipolar Transistor, -50V, -8A, Low VCE(sat), (PNP)NPN Single TP/TP-FA
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Element Configuration
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Radiation Hardening
RoHS
Schedule B
Transition Frequency
Width
Description
DPAK
Non-Compliant
50 V
50 V
-230 mV
50 V
Single
-6 V
290 MHz
5.5 mm
200
Lead Free
6.5 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
50 V
8 A
290 MHz
150 °C
1 W
-55 °C
1
3
2
Tape and Reel
PNP
1 W
No
Compliant
8541290080
290 MHz
2.3 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹63.13
Total Price
₹126.27
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹126.27
₹126.27
10
₹62.33
₹623.33
25
₹62.33
₹1558.32
50
₹62.32
₹3115.76
100
₹54.42
₹5441.90
500
₹54.42
₹27211.30
1000
₹37.20
₹37201.46
