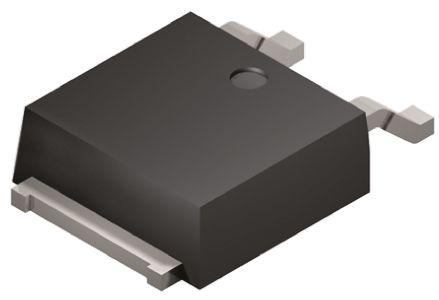

2SB1201S-TL-E
Manufacturer
onsemi
Description
Bipolar Transistor, -50V, -2A, Low VCE(sat), (PNP)NPN Single TP/TP-FA
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Element Configuration
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Radiation Hardening
RoHS
Schedule B
Transition Frequency
Width
Description
TO-252-3
Non-Compliant
-60 V
50 V
-300 mV
50 V
Tin Bismuth
Single
-6 V
150 MHz
2.3 mm
140
Lead Free
6.5 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
50 V
2 A
150 MHz
150 °C
800 mW
-55 °C
1
3
2
Tape and Reel
PNP
No
Compliant
8541210080, 8541210080|8541210080, 8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080
150 MHz
5.5 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹117.37
Total Price
₹117.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.37
₹117.37
10
₹68.56
₹685.57
25
₹68.59
₹1714.82
50
₹68.59
₹3429.64
100
₹47.00
₹4700.31
500
₹47.00
₹23500.67
1000
₹37.20
₹37201.46
