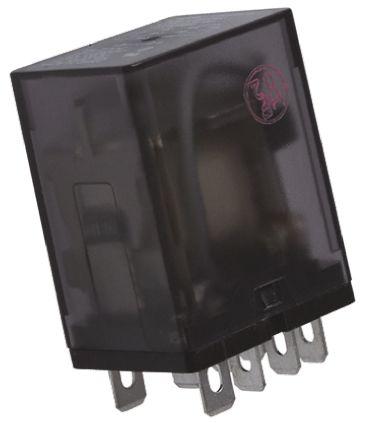

3-1393144-9
Manufacturer
TE Connectivity / AMP
Description
Electromechanical Relay 12VAC 43Ohm 15A DPDT(28.17x21.84x41.33)mm Socket General Purpose Relay
Datasheet
DownloadProduct Attributes
Type
Approvals
China RoHS
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (AC)
Contact Current Rating
Contact Material
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Electrical Life
ELV
Height
Insulation Resistance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Number of Poles
Operate Time
Power Consumption
Power Rating
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Sealable
Termination
Throw Configuration
Voltage Rating (AC)
Weight
Width
Description
CSA, UL
Non-Compliant
100 mA
1.2 W
43 Ω
Non-Latching
10.2 V
15 A
Cadmium, Silver
100 mΩ
120 V
15 A
21.84 mm
100 kcycles
Non-Compliant
34.9 mm
1 GΩ
Not Applicable
28.2 mm
Production (Last Updated: 7 months ago)
15 A
70 °C
120 V
30 V
-45 °C
Socket
8
2
13 ms
1.2 W
1.2 W
Unknown
General Purpose
6 ms
13 ms
Compliant
DUST PROOF
Solder
DPDT
120 V
51 g
21.8 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹3197.56
Total Price
₹3197.56
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹3197.56
₹3197.56
10
₹2854.15
₹28541.54
25
₹2725.08
₹68126.95
50
₹2616.29
₹130814.66
100
₹2492.57
₹249256.99
