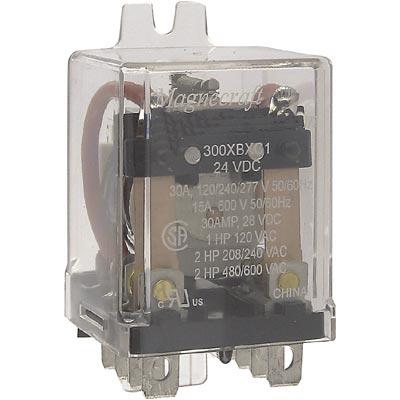

300XBXC1-24D
Manufacturer
Schneider Electric
Description
Relay; E-Mech; Power; DPDT; Cur-Rtg 30A; Ctrl-V 24DC; Vol-Rtg 300/28AC/DC; Flange Mnt
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Voltage (AC)
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Height
Length
Max Current Rating
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Operate Time
Power Consumption
Power Rating
REACH SVHC
Relay Type
RoHS
Switching Voltage
Termination
Throw Configuration
Voltage Rating (AC)
Weight
Width
Description
CSA, UL
300
80 mA
3.4 W
300 Ω
24 V
24 V
30 A
Silver
30 A
48.42 mm
63.5 mm
38.89 mm
30 A
300 V
28 V
-30 °C
Flanges, Panel
8
20 ms
2 W
1.5 W
Unknown
General Purpose
Compliant
600 V
Quick Connect
DPDT
600 V
85 g
38.89 mm
₹4593.64
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹4593.64
₹4593.64
10
₹4312.92
₹43129.22
25
₹4226.67
₹105666.71
50
₹4226.67
₹211333.42
100
₹4226.67
₹422666.84
500
₹4819.19
₹2409594.85
