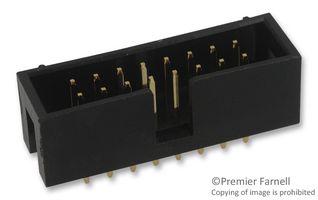

30316-6002HB
Manufacturer
3M
Description
Conn Shrouded Header (4 Sides) HDR 16 POS 2.54mm Solder ST Top Entry Thru-Hole Box
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Gender
Height
Housing Color
Housing Material
Lead Free
Length
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Row Spacing
Termination
Description
Black
Male Pin
Brass
5.9944 mm
Gold
1 A
8.78 mm
Male
9.525 mm
Black
Polybutylene
Lead Free
27.9 mm
1 A
105 °C
-55 °C
Through Hole
16
16
2
Straight
2.54 mm
No SVHC
Compliant
2.54 mm
Solder
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
