305-086-500-202
Manufacturer
EDAC
Description

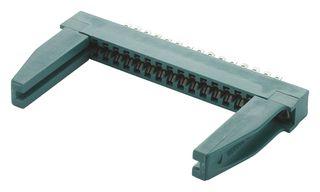

305-086-500-202 86 Way Card Edge Connector (Pitch 0.156" row 0.140") with lugs
Datasheet
DownloadProduct Attributes
Type
Board Thickness
Card Thickness
Color
Contact Material
Contact Plating
Contact Resistance
Current Rating
Flammability Rating
Height
Housing Color
Insulation Material
Insulation Resistance
Lead Free
Length
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Width
Description
1.57 mm
1.5748 mm
Green
Bronze, Gold, Nickel, Tin
Gold
10 mΩ
5 A
UL94 V-0
11.7 mm
Green
Polyester
5 GΩ
Lead Free
178 mm
5 A
125 °C
-65 °C
Panel
86
86
2
Straight
3.96 mm
Unknown
Compliant
3.56 mm
Solder
1.8 kV
12.7 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1721.67
Total Price
₹1721.67
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1721.67
₹1721.67
10
₹1523.10
₹15230.98
