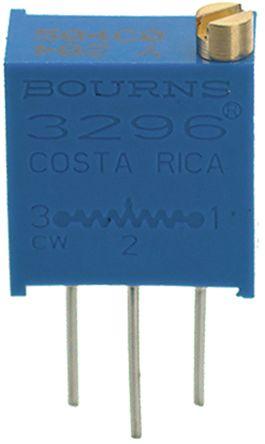

3296Y-1-103LF

Manufacturer

Bourns

Description

Cermet trimmer potentiometer, 25 turns, 10 k, 0.5 W, THT, on top, 3296Y-1-103LF

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Composition

Depth

Height

Insulation Resistance

Lead Free

Length

Max Operating Temperature

Max Power Dissipation

Military Standard

Min Operating Temperature

Mount

Number of Pins

Number of Terminals

Number of Turns

Power Rating

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Taper

Temperature Coefficient

Termination

Tolerance

Type

Voltage Rating (DC)

Weight

Width

Description

Blue

Cermet

4.83 mm

10.03 mm

1 GΩ

Lead Free

9.53 mm

125 °C

500 mW

Not

-55 °C

PCB, Panel, Through Hole

2

3

25

500 mW

No

No SVHC

10 kΩ

Compliant

8533400080, 8533400080|8533400080|8533400080|8533400080|8533400080

Linear

100 ppm/°C

Pin

10 %

Potentiometer

300 V

850.485694 mg

4.83 mm
