36550402J12NT
Manufacturer
TE Connectivity Passive Product
Description

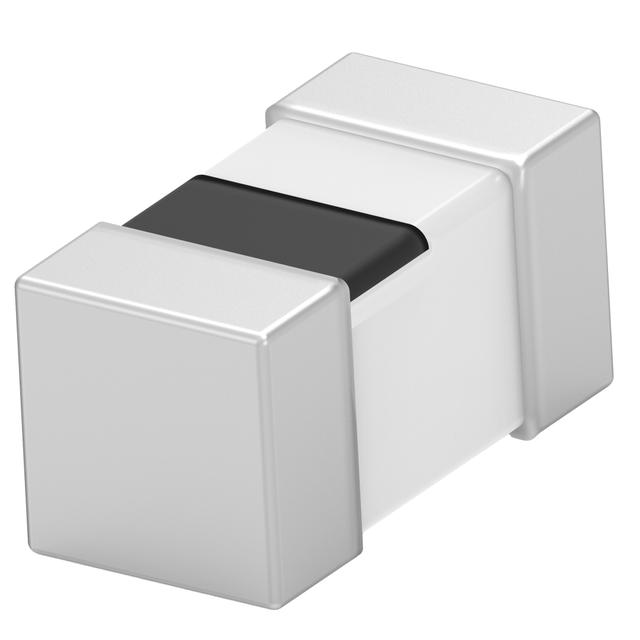

TE CONNECTIVITY - SIGMAINDUCTORS - 36550402J12NT - Multilayer Inductor, 12 nH, 0.5 ohm, 2.7 GHz, 400 mA, 0402 [1005 Metric], 3655 Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ceramic
12 nH
±5%
400 mA
Unshielded
500mOhm Max
8 @ 100MHz
2.7GHz
AEC-Q200
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0402
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.026" (0.65mm)
₹12.20
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.21
₹102.14
25
₹5.38
₹134.40
50
₹5.38
₹268.80
100
₹5.38
₹537.59
500
₹3.88
₹1940.96
1000
₹3.63
₹3628.45
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ceramic
12 nH
±5%
400 mA
Unshielded
500mOhm Max
8 @ 100MHz
2.7GHz
AEC-Q200
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0402
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.026" (0.65mm)
