4-1393238-2
Manufacturer
TE Connectivity
Description

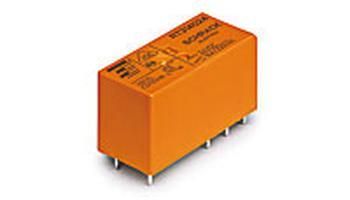

Electromechanical Relay 5VDC 100Ohm 15A SPDT (29x12.7x15.7)mm THT Power Relay
Datasheet
DownloadProduct Attributes
Type
Approvals
China RoHS
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Contact Voltage Rating (AC)
Current Rating
Depth
Dropout Voltage
ELV
Height
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Pins
Operate Time
Packaging
Power Consumption
Radiation Hardening
REACH SVHC
Relay Type
Release Time
RoHS
Schedule B
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
CSA, UL, VDE
Compliant
50 mA
250 mW
100 Ω
Non-Latching
3.7 V
10 A
Silver
400 V
10 A
12.7 mm
500 mV
Compliant
15.7 mm
29 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
10 A
85 °C
400 V
-40 °C
PCB, Through Hole
5
10 ms
Carton
250 mW
No
Yes
General Purpose
8 ms
Compliant
8536410020, 8536410020|8536410020, 8536410020|8536410020|8536410020, 8536410020|8536410020|8536410020|8536410020
Plug, Through Hole
SPDT
400 V
5 V
14 g
12.7 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹392.43
Total Price
₹392.43
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹392.43
₹392.43
10
₹392.43
₹3924.31
25
₹369.00
₹9225.12
50
₹313.91
₹15695.67
100
₹298.19
₹29818.82
500
₹291.96
₹145981.50
1000
₹291.96
₹291962.99
