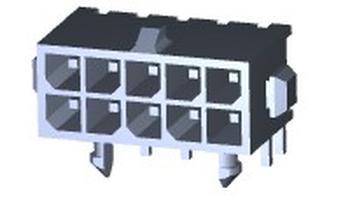

4-794620-0
Manufacturer
TE Connectivity / AMP
Description
Conn Power Header 10 POS 3mm Solder RA Through Hole 10 Terminal Single Port Tray
Datasheet
DownloadProduct Attributes
Type
Approvals
China RoHS
Circuit Application
Color
Connector System
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Contact Retention
Contact Style
Current Rating
Depth
Dielectric Material
Fastening Type
Flammability Rating
Housing Color
Housing Material
Insulation Resistance
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Power Positions
Number of Rows
Number of Terminals
Operating Supply Voltage
Orientation
Packaging
PCB Mounting Orientation
PCB Thickness
Pitch
Plating
Plating Thickness
REACH SVHC
RoHS
Row Spacing
Sealable
Shielding
Terminal Pitch
Termination
VDE Tested
Voltage Rating
Wire Gauge (Max)
Wire Gauge (Min)
Description
CSA
Compliant
Power
Black
Wire-to-Board
Pin
5 A
Male
Brass
Gold, Tin
20 mΩ
Without
Pin
5 A
11.92 mm
Polyamide
Ramp
UL94 V-0
Black
Nylon
100 MΩ
Lead Free
19 mm
Production (Last Updated: 8 months ago)
105 °C
250 V
-40 °C
Through Hole
10
10
1
10
10
2
10
250 V
Right Angle
Bulk
Right Angle
1.6002 mm
2.9972 mm
Gold
762 nm
Yes
Compliant
2.9972 mm
No
No
3 mm
Solder
Yes
250 V
20 AWG
30 AWG
In Stock
Quantity
MOQ : 1
Per Unit Price
₹314.78
Total Price
₹314.78
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹314.78
₹314.78
10
₹257.07
₹2570.68
25
₹257.05
₹6426.25
50
₹255.98
₹12799.15
100
₹197.32
₹19732.24
500
₹197.32
₹98658.52
1000
₹170.65
₹170650.82
