5-146257-6
Manufacturer
TE Connectivity AMP Connectors
Description

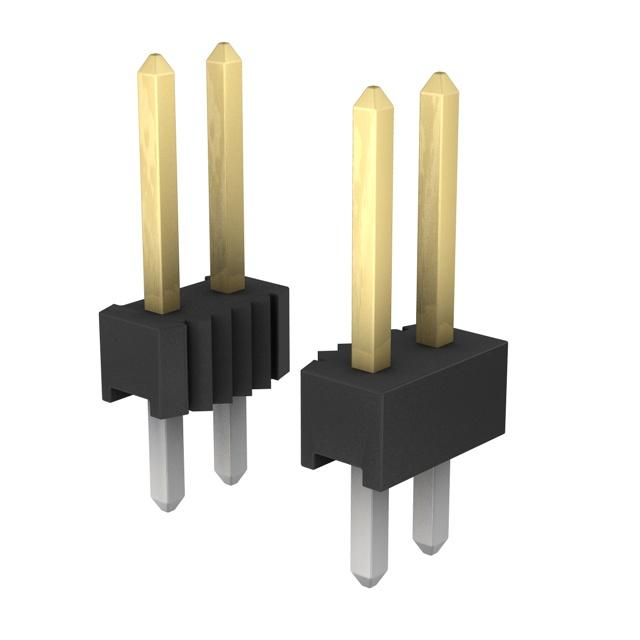

TE CONNECTIVITY - AMP - 5-146257-6 - CONNECTOR, HEADER, 12POS, 2ROW, 2.54MM
Datasheet
DownloadProduct Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Contact Length - Post
Overall Contact Length
Insulation Height
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Location
Contact Material
Insulation Material
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Description
Header, Breakaway
Male Pin
0.100" (2.54mm)
12
2
0.100" (2.54mm)
All
Board to Board or Cable
Unshrouded
Through Hole
Solder
Push-Pull
0.230" (5.84mm)
0.120" (3.05mm)
0.440" (11.18mm)
0.090" (2.29mm)
Square
Gold
30.0µin (0.76µm)
Tin
Copper Alloy
Liquid Crystal Polymer (LCP)
-65°C ~ 105°C
UL94 V-0
Black
3A
₹368.75
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹368.75
₹368.75
10
₹312.93
₹3129.30
25
₹312.97
₹7824.16
50
₹312.95
₹15647.42
100
₹302.47
₹30246.88
500
₹234.93
₹117464.50
1000
₹231.37
₹231369.64
Product Attributes
Type
Connector Type
Contact Style
Pitch
Number of Positions
Number of Rows
Row Spacing - Mating
Number of Positions Loaded
Style
Shrouded
Mounting Type
Termination
Fastening Type
Contact Mating Length
Contact Length - Post
Overall Contact Length
Insulation Height
Contact Shape
Contact Mating Length
Contact Finish Thickness - Mating
Contact Location
Contact Material
Insulation Material
Max Operating Temperature
Flammability Rating
Insulation Color
Max Current Rating
Description
Header, Breakaway
Male Pin
0.100" (2.54mm)
12
2
0.100" (2.54mm)
All
Board to Board or Cable
Unshrouded
Through Hole
Solder
Push-Pull
0.230" (5.84mm)
0.120" (3.05mm)
0.440" (11.18mm)
0.090" (2.29mm)
Square
Gold
30.0µin (0.76µm)
Tin
Copper Alloy
Liquid Crystal Polymer (LCP)
-65°C ~ 105°C
UL94 V-0
Black
3A
