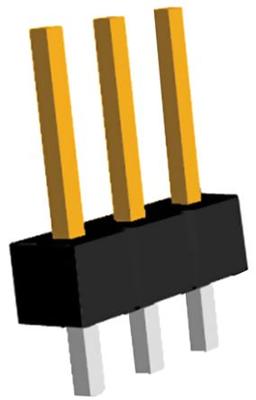

5-146285-3
Manufacturer
TE Connectivity
Description
Conn Unshrouded Header Hdr 3 Pos 2.54Mm Solder St Top Entry Thru-Hole Carton
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Mating Length
Contact Plating
Contact Shape
Contact Style
Current Rating
Depth
ELV
Flammability Rating
Gender
High Speed Serial Data Connector
High Temperature Housing
Housing Color
Housing Material
Keyed
Lead Free
Lead Length
Length
Lifecycle Status
Manufacturer Lifecycle Status
Mating Post Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
PCB Mounting Orientation
PCB Thickness
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Description
CSA
Black
Header, Pin, Plug
3 A
Male
5.842 mm
Gold
Square
Pin
3 A
2.34 mm
Compliant
UL94 V-0
Male
No
Yes
Black
Polymer
No
Lead Free
2.29 mm
7.21 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
5.842 mm
105 °C
-65 °C
Through Hole
3
3
1
Vertical
Carton
Vertical
1.6002 mm
2.54 mm
No
Unknown
Compliant
2.54 mm
Through Hole
750 V
₹50.33
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹38.89
₹388.88
25
₹38.83
₹970.82
50
₹38.85
₹1942.55
100
₹34.80
₹3479.74
500
₹34.79
₹17395.98
1000
₹31.83
₹31828.28
