505110-1192
Manufacturer
Molex
Description

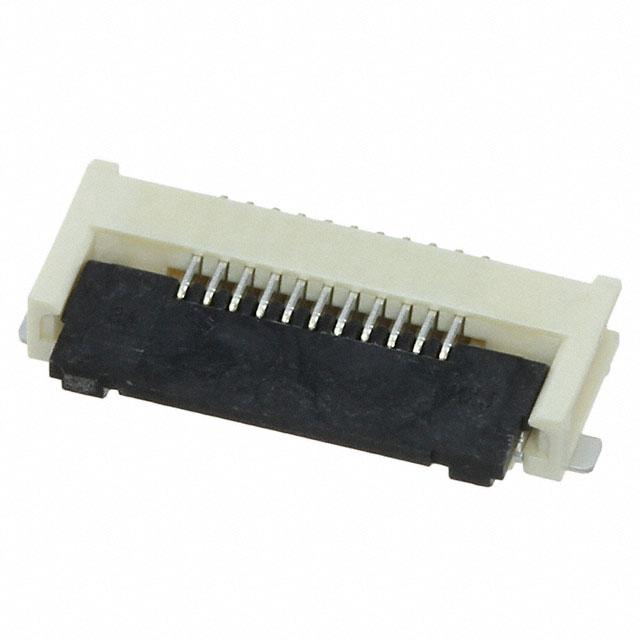

MOLEX - 505110-1192 - FFC / FPC Board Connector, 0.5 mm, 11 Contacts, Receptacle, Easy-On 505110 Series, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Flat Flex Type
Mounting Type
Connector Type
Number of Positions
Pitch
Termination
FFC, FCB Thickness
Height Above Board
Locking Feature
Cable End Type
Contact Material
Contact Plating
Housing Material
Actuator Material
Features
Voltage Rating
Max Operating Temperature
Flammability Rating
Description
FFC, FPC
Surface Mount, Right Angle
Contacts, Bottom
11
0.020" (0.50mm)
Solder
0.30mm
0.075" (1.90mm)
Flip Lock, Backlock
Tabbed, Tapered
Phosphor Bronze
Gold
Liquid Crystal Polymer (LCP), Glass Filled
Polyamide (PA), Nylon, Glass Filled
Solder Retention, Zero Insertion Force (ZIF)
50V
-40°C ~ 105°C
UL94 V-0
₹99.44
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹84.90
₹848.95
25
₹75.70
₹1892.60
50
₹75.70
₹3785.20
100
₹72.09
₹7208.88
500
₹64.26
₹32129.16
1000
₹62.03
₹62030.53
Product Attributes
Type
Flat Flex Type
Mounting Type
Connector Type
Number of Positions
Pitch
Termination
FFC, FCB Thickness
Height Above Board
Locking Feature
Cable End Type
Contact Material
Contact Plating
Housing Material
Actuator Material
Features
Voltage Rating
Max Operating Temperature
Flammability Rating
Description
FFC, FPC
Surface Mount, Right Angle
Contacts, Bottom
11
0.020" (0.50mm)
Solder
0.30mm
0.075" (1.90mm)
Flip Lock, Backlock
Tabbed, Tapered
Phosphor Bronze
Gold
Liquid Crystal Polymer (LCP), Glass Filled
Polyamide (PA), Nylon, Glass Filled
Solder Retention, Zero Insertion Force (ZIF)
50V
-40°C ~ 105°C
UL94 V-0
