5227754-2
Manufacturer
TE Connectivity
Description

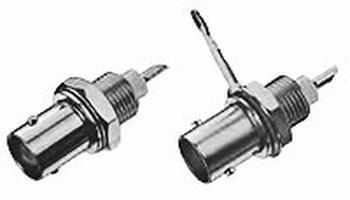

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Solder Terminal, Detent, Jack
Datasheet
DownloadProduct Attributes
Type
Body Material
Body Plating
China RoHS
Connector Type
Contact Gender
Contact Plating
Contact Resistance
ELV
Fastening Type
Frequency
Gender
Impedance
Insulation Resistance
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Frequency
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Orientation
Outside Diameter
Packaging
PCB Mounting Orientation
Polarity
Radiation Hardening
REACH SVHC
RoHS
Sealable
Shell Finish
Shielding
Termination
Voltage Rating
Description
Zinc
Nickel
Non-Compliant
BNC
Female
Gold
2.5 mΩ
Compliant
Bayonet
4 GHz
Female
50 Ω
5 GΩ
Lead Free
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
4 GHz
85 °C
-55 °C
Panel
1
1
1
1
Straight
14.529 mm
Carton
Straight
Standard
No
Unknown
Compliant
No
Nickel
No
Solder
500 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹345.90
Total Price
₹345.90
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹345.90
₹345.90
10
₹307.13
₹3071.30
25
₹307.17
₹7679.13
50
₹311.56
₹15577.90
100
₹296.68
₹29668.16
500
₹264.83
₹132414.33
