532430-9

Manufacturer

TE Connectivity / AMP

Description

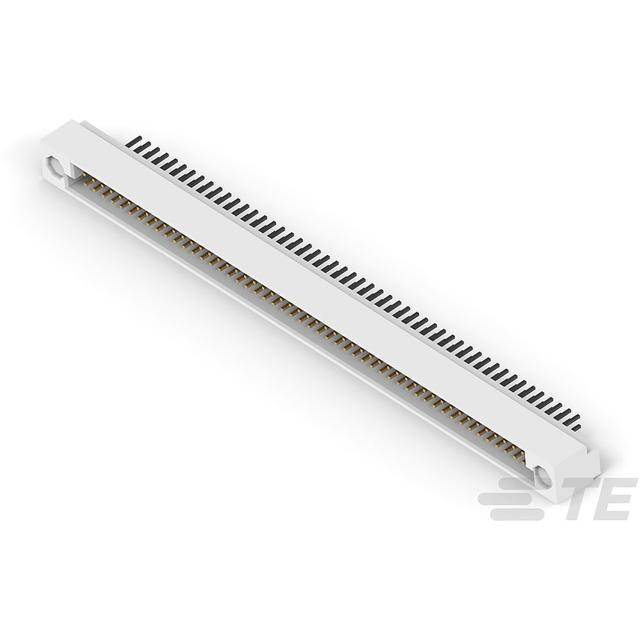

HDI PIN ASSY 2 ROW 100 POS, PCB Headers and Receptacles | TE Connectivity 532430-9

Datasheet

download datasheetDownload

Product Attributes

Type

Circuit Application

Color

Connector Type

Contact Current Rating

Contact Finish Thickness - Mating

Contact Material

Contact Plating

Contact Style

Depth

ELV

Flammability Rating

Gender

Height

Housing Color

Insulation Resistance

Lead Free

Lead Length

Length

Lifecycle Status

Make First / Break Last

Mating Alignment

Mating Post Length

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Positions

Number of Rows

Orientation

Packaging

PCB Mount Alignment

PCB Mounting Orientation

PCB Mount Retention

PCB Thickness

Pitch

Plating

RoHS

Row Spacing

Sealable

Stackable

Tail Length

Termination

Underplate Material

Description

Signal

Natural

Pin, Plug

3 A

762 nm

Bronze

Gold, Tin

Pin

9.65 mm

Compliant

UL94 V-0

Male

11.684 mm

Natural, Brown

2 MΩ

Contains Lead

4.826 mm

273.05 mm

Production (Last Updated: 6 days ago)

No

Without

5.334 mm

125 °C

-65 °C

Through Hole

100

100

2

Vertical

Bulk

Without

Vertical

Without

3.18 mm

2.54 mm

Gold

Compliant

2.54 mm

No

No

4.83 mm

Through Hole

Nickel

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹2271.91

Total Price

₹2271.91


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

2271.91

2271.91

10

2271.73

22717.28
